DAIKIN BH 6.0kW Inverter Bulkhead System

$2,131.00

DAIKIN FDYBA60A-G2V

6kW Inverter Bulkhead System 1 Phase
(Old System Number: FDYBA60A-GV)

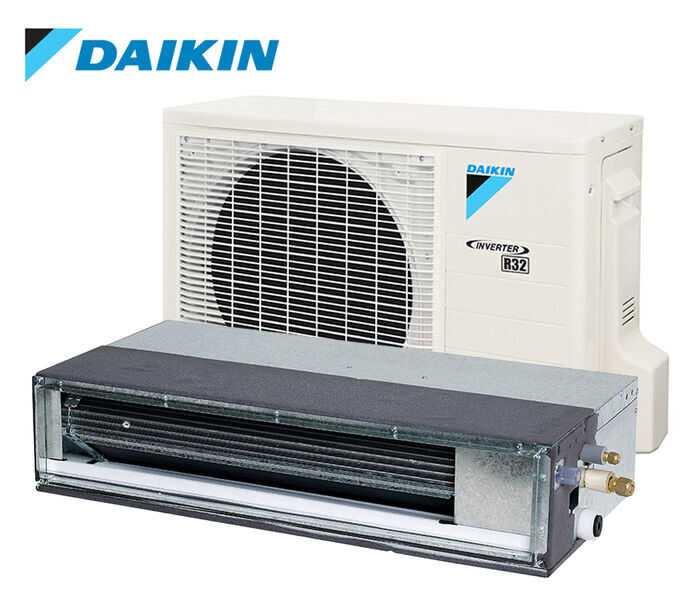

Includes – Indoor Unit FDYBA60AV1 | Outdoor Unit RZAC60G2V1 | Controller – BRC4C65
(Old System Number: RZAC60GV1)
DC condensate pump is equipped as standard with a 750mm lift.

6.0 kW Cooling | 7.0 kW Heating

4 Star Energy Rating

SPECIFICATIONS

INDOOR UNIT		FDYBA60AV1
OUTDOOR UNIT		RZAC60G2V1
Rated Capacity	Cool (kW)	6.00
	Heat (kW)	7.00
Capacity Range	Cool (kW)	2.0-6.7
	Heat (kW)	2.0-8.0
Power Input (Rated)	Cool (kW)	1.67
	Heat (kW)	1.80
E.E.R/C.O.P	C/H	3.59/3.89
TCSPF (Residential)	Hot/Average/Cold	5.22/4.41/4.48
HSPF (Residential)	Hot/Average/Cold	5.28/4.58/3.98
Airflow Rate (Rated)	l/s	325
Indoor Sound Level (H) @ 1.5m	Discharge (dBA)	47.7
	Suction (dBA)	46.2
	Casing Breakout (dBA)	35.6
Piping Length	m	30
Indoor Fan Speeds		5 Steps, Quiet and Automatic
Dimensions (HxWxD)	Indoor (mm)	200x1100x450
	Outdoor (mm)	595x845x300
Weight	Indoor (kg)	24
	Outdoor (kg)	64
Power Supply	V/Hz	1 Phase 220-240V, 50Hz
Compressor Type		Hermetically Sealed Swing Type
Refrigerant		R32
Pipe Sizes	Liquid (mm)	6.4 (Flared)
	Gas (mm)	12.7 (Flared)
	Drain (mm)	ID 20 / OD 26
Supply Air Opening	mm (HxW, Flange)	153×1060
Return Air Opening	mm (HxW, Flange)	163×975
Outdoor Operating Range	Cool (°CDB)	-10 to 50
	Heat (°CWB)	-15 to 18
EPA Sound Power Level	dBA	63
Outdoor Sound Level (H) @ 1m	Pressure dBA (C/H)	48/51

FEATURES

Compact PerformanceOffering maximum performance in a compact, 450mm deep package, this model is ideal for wardrobe installations.Quiet OperationNoise levels are truly discreet and whisper-quiet at 19dBA (low fan speed, 35 Class Model).
Flexible Return Air

The option of a rear or bottom suction return allows for greater installation flexibility.

Built-in condensate pump

DC condensate pump is equipped as standard with a 750mm lift.

3-D Auto Swing Grille (Option)

Vertical & horizontal motorised louvres installed provide 3-D airflow distribution, circulating air to all corners of the room.Vertical & horizontal motorised louvres installed provide 3-D airflow distribution, circulating air to all corners of the room.

^{*BDG20A09A1 for 25 Class, BDG20A15A1 for 35-50 Class & BDG20A20A1 for 60-71 Class. Only compatible with BRC1E63 controller.}

Auto Clean Air Filter Module (Option)

This module keeps the internal filter clean by collecting dust and storing it in a convenient vacuum port for easy removal.

^{^BAE20A62 for 25 Class, BAE20A82 for 35-50 Class & BAE20A102 for 60-71 Class (all models extend depth by 188mm). Only compatible with BRC1E63 controller.}
