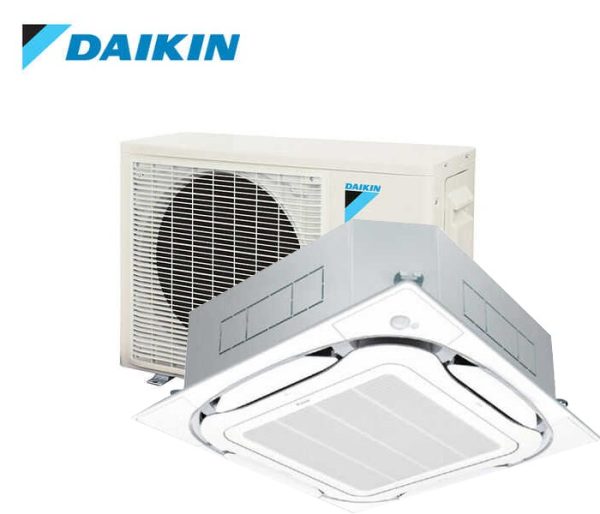

Name: DAIKIN CS 7.1kW Inverter Reverse Cycle Cassette System - Heat Cool Shop
SKU: FCA71CAVMASWWD-1P
Price: 3950.00 AUD
Availability: InStock

SPECIFICATIONS

				71
Model Name		Indoor unit
				FCA71CAVMA
		Outdoor unit		RZAV71C2V1
Power supply				1 Phase, 220-240V, 50Hz
Cooling capacity^1,3 Rated (Min. – Max.)			kW	7.1 (3.2-8.0)
Heating capacity^2,3Rated (Min. – Max.)			kW	8.0 (3.5-9.0)
Power consumption		Cooling ¹	kW	1.81
		Heating ²	kW	1.81
EER		Cooling	kW/kW	3.92
COP		Heating	kW/kW	4.42
AEER		Cooling		3.82
ACOP		Heating		4.30
TCSPF (Cooling) Commercial / Residential		Hot		5.59 / 5.14
		Average		5.54 / 4.47
		Cold		5.84 / 4.50
HSPF (Heating) Commercial / Residential		Hot		5.11 / 5.11
		Average		4.82 / 4.65
		Cold		4.35 / 4.09
Indoor unit	Colour	Unit		———
		Decoration panel		Fresh White
	Airflow rate (H / HM / M / ML / L)		/s	383 / 350 / 308 / 267 / 225
			m³/min	23.0 / 21.0 / 18.5 / 16.0 / 13.5
	Sound pressure level⁴ (H / HM / M / ML / L)		dB(A)	37.0 / 36.0 / 34.0 / 31.0 / 27.5
	Dimensions (HXWXD)	Unit	mm	256X840X840
		Decoration panel	mm	50X950X950
	Machine weight	Unit	kg	22
		Decoration panel	kg	5.5
	Certified operation range	Cooling	°CWB	14 to 25
		Heating	°CDB	15 to 27

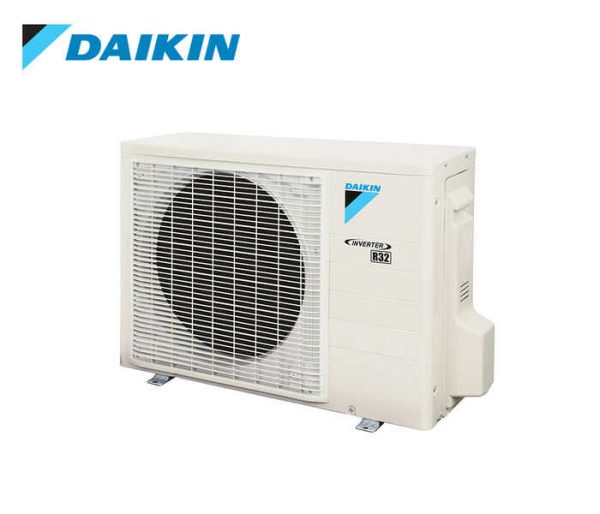

Outdoor unit	Colour			Ivory White
	Compressor	Type		Hermetically sealed swing type
		Motor output	kW	2.40
	Refrigerant charge (R-32)		kg	2.60 (Charged for 30 m)
	Sound pressure level ⁴	Cooling / Heating	dB(A)	48 / 50
		Night quiet mode	dB(A)	44
	Sound power level		dB(A)	67
	Dimensions (HXWXD)		mm	990X940X320
	Machine weight		kg	69
	Certified operation range	Cooling	°CDB	-5 to 50
		Heating	°CWB	-15 to 15.5
Piping connections	Liquid (Flare)		mm	o/ 9.5
	Gas (Flare)		mm	o/ 15.9
	Drain	Indoor unit	mm	VP25 (I.D.o/ 25XO.D.o/ 32)
		Outdoor unit ⁵	mm	Connectable hose I.D. o/ 25
Max. interunit piping length			m	75 (Equivalent length 90)
Max. installation height difference			m	30
Heat insulation				Both liquid and gas piping

FEATURES

Energy Saving

New premium inverter series achieves high TCSPF with latest Daikin technology

Durability

High operation range up to 50°C (Premium Inverter series)

The outdoor operation range is now extended to 50℃. This enables reliable operation even under high temperature conditions, and wider choice of installation locations

Self-diagnosis functions enable prompt maintenance response

An error message appears on the LCD of the remote controller and an LED lights up on the unit. When the BRC1E63 is installed, the error code appears showing contact information and model name.

Coated printed circuit boards (outdoor unit)

Coated circuit boards prevent problems caused by humidity and airborne dust. It also protects against salt contained in sea breezes. Both sides of the PCB in outdoor units are coated.

Height Compact

Compact size and lightweight

New outdoor units from 10.0 kW to 14.0 kW class of RZAV series and 14.0 kW class of RZAC series are reduced to only 870 mm height

Double-stacking installation possible

The low height casing design allows for compact double-stacking of outdoor units to maximize utilization of installation space

This low height casing design provides occupants with a clear, unobstructed view of the scenery

R-32

From R-410A to R-32, Another step towards lower global warming potential.

If you want a new HFC refrigerant with zero ozone depletion potential, which also has a lower global warming potential than R-410A, use R-32. Achieving new levels of energy efficiency while responding to environmental needs, Daikin has redesigned the SkyAir series from the ground up using R-32.

Quiet Operation

Night quiet operation mode

Consideration is given for people living nearby. Outdoor unit operating sound can be reduced.

Smart Airow Control

Indoor units can provide 5-step and 3-step fine control of air volume
Comfort ensured by ‘Auto’ airflow rate that matches load level- Convenient energy-efficiency for stores with peak and quiet periods.

Design Flexibility

External signal forced OFF and ON/OFF operation (with T1 / T2 terminals)

As an energy saving feature, the air conditioner can be interlocked with the key card system. Using a 3rd-party building management system, air conditioning and lighting can be interlocked

Key card and window / door interlock (with optional adaptor)

This function will turn the air conditioner OFF when the window/door is opened and will automatically turn ON when the window/door is closed to save energy.

External equipment interlock (FCTA and FCA series only)

Power conservation is possible through interlock* of external equipment, such as lighting, with the infrared presence sensor. This function will turn the air conditioner OFF when the window/door is opened and will automatically turn ON when the window/door is closed to save energy. As an energy saving feature, the air conditioner can be interlocked with the key card system. Using a 3rd-party building management system, air conditioning and lighting can be interlocked. Human presence is detected by the built-in infrared presence sensor in the sensing panel, and the presence detection signal can be output and interlocked with external equipment such as ventilation and lighting equipment.

Indoor units comply with D -Net standards

Easy connection to DIII-NET and long piping length makes this solution suitable for projects including and SkyAir.

Convenient Functions

Navigation remote controller BRC1E63 includes various convenient functions

Automatic return to temperature preset by owner.

Setpoint auto reset

– Even if the set temperature is changed, the new set temperature returns to the previous preset value after a preset duration of time. – Period selectable from 30, 60, 90, or 120 minutes.

Owner can preset upper and lower temperatures.
Setpoint range set

Saves energy by limiting the min. and max. set temperature. – Avoids excessive heating or cooling. – This function is convenient if the remote controller is installed where anyone can change the settings. – BRC1H63W(K) also have this function

Demand control function

All models feature Demand Response Enabling Device (DRED) capability* compliant to AS/NZS 4755.3.1:2012. This device is designed to enable electricity providers to reduce peak demand by reducing your air conditioner’s maximum power consumption

Quick start function

Gets the space to a comfortable temperature rapidly before the arrival of office workers or shop customers. The airflow rate of indoor unit is automatically controlled, increasing the capacity of the outdoor unit and quickly bringing the room to a comfortable temperature. This function will operate for a maximum of 30 minutes before the air conditioner automatically returns to normal operation

Streamer Filter Clean Function

Introducing Streamer technology to SkyAir Indoor units

Daikin Streamer technology enhances maximum efficiency in cleaning, which uses powerful decomposition properties to decompose substances captured by filter for better air quality. Streamer filter clean unit irradiates Streamer when the fan and air conditioning operation are stopped. Streamer fumigates the cabin and sterilizes the filter

Streamer filter clean unit is built-in inside the indoor unit
Streamer filter clean unit is option unit

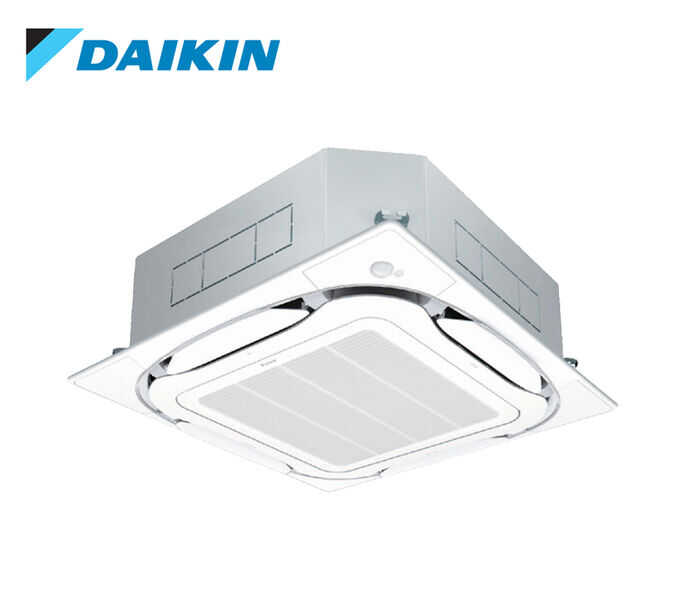

Cassette air conditioner with 360° uniform airflow sets the standard.

Circulation Airflow

Cools the entire room to deliver comfort that never feels cold.
Effectiveness may differ according to room conditions, room size, and distance to walls.

Individual Airflow Direction Control
Airflow direction can be individually adjusted for each air discharge outlet to deliver optimal air distribution.

Sensing Technology
Dual sensors and individual airflow direction control automatically provide optimal control of airflow.

Comfort

Unified square panels
Panel size is the same for all models. It is easy to maintain a neat appearance when multiple units are installed in the same room.

Optimal comfort and convenience assured by 3 air discharge modes

Switchable fan speed: 5 steps and Auto

Suitable for high ceilings
Even in spaces with high ceilings, a comfortable airflow is carried down to the floor level.

Cleanliness

Silver ion anti-bacterial drain pan
A built-in antibacterial treatment that uses silver ion in the drain pan prevents the growth of slime, bacteria, and mould that cause odours and clogging. (The lifespan of a silver ion cartridge depends on the usage environment, but should be changed once every two to three years.)

Non-flocking flaps
Flaps can be detached without use of tools. Condensation does not easily form and dirt does not cling to non-flocking flaps. They are easy to clean.

Filter has anti-mould and antibacterial treatment
Prevents mould and microorganisms growing out of the dust and moisture that adheres to the filters.

Quick and Easy Installation

Lightweight
All models can be installed without using a lifter.

Installable in tight ceiling spaces

Easy height adjustment
Each corner of the unit has an adjuster pocket that lets you easily adjust the unit’s suspended height.

Temporary placement of control box lid
Because the control box lid can be temporarily hung on the unit, there is no need to climb down the stepladder to retrieve it.

Installed in any direction
Since the orientation of the suction grille can be adjusted after installing, the direction of the suction grille lines can be unified when multiple units are installed.

Easy hanging
Washer fixing plates secure washers in place and prevent washers from falling for easy installation.

Easy removal of corner cover
It is possible to easily remove without use of screws or tools.

Ease in temporary hanging of decoration panel
In addition to the temporary hanging fixtures in 2 places normally used, corner part mounting fixtures in 4 places are provided.

Drain pump
Equipped as standard accessory with 850 mm lift.

Transparent drain socket

Easy Maintenance

Condition of the drain pan and drain water
Can be checked by removing the suction grille and drain plug.

24 mm diameter drain outlet
The drain outlet allows insertion of a finger or dental mirror for inspection of the internal cleanliness of the drain pan. Removal of the suction panel enables access.

Ultra long-life filter (option)

Low gas pressure detection

Auto grille panel (option)
Grille and air filter cleaning can be performed without need for a stepladder by lowering the grille.
