$787.00

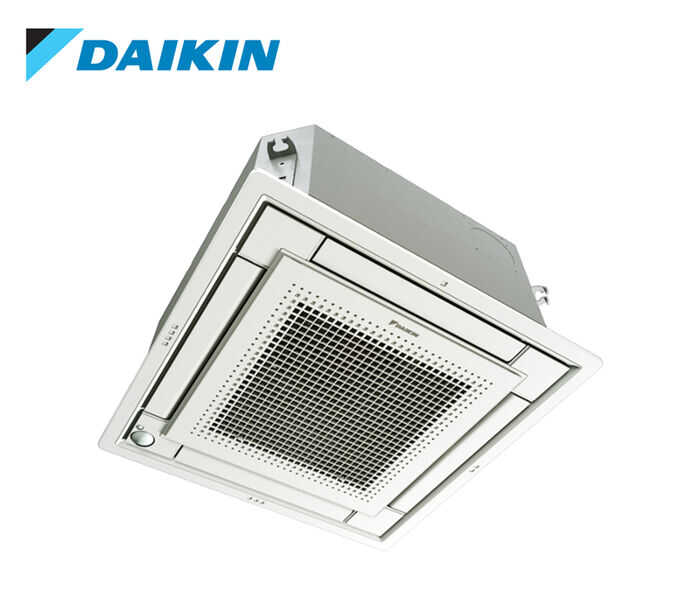

Daikin FFA50RV1A
5.0kW Multi Reverse Cycle Compact Cassette Indoor Unit Only
5.0kW Cooling | 5.0 kW Heating
Less Impact on Global Warming | R32
| INDOOR UNIT | FFA50RV1A | |
| Power Supply | 1 phase, 220-240V, 50Hz | |
| Capacity | Cool/Heat(kW) | 5.0 |
| Front Panel Colour | White | |
| Air Flow Rate (H) | Cool (l/s) | 200 |
| Heat (l/s) | 200 | |
| Sound Level (H/L) | Cool (dBA) | 38/30 |
| Heat (dBA) | 38/28 | |
| Sound Power Level (H) | Cool (dBA) | 51 |
| Heat (dBA) | 51 | |
| Fan Speed | 2 steps | |
| Dimensions (HxWxD) | (mm) | 286x575x575 |
| Machine Weight | (kg) | 17.5 |
| Piping Connections | Liquid (mm) | 6.4 (Flared) |
| Gas (mm) | 12.7 (Flared) | |
| Drain (mm) | VP20 (OD 26 / ID 20) | |
Completely Flat Finish
This discreet configuration allows the indoor unit to be installed completely flat to the ceiling. The unit is designed to fit inside a ceiling with a height of 300 mm or more and a ceiling grid of just 600 mm wide. This allows lights, speakers and sprinklers to be placed in adjoining ceiling tiles.
Draft Prevention Setting
The draft prevention setting stops air blowing directly on
to a person’s body. With this setting, flap movement can be limited to an arc of 0 to 35 degrees. This helps to eliminate uncomfortable drafts while maintaining effective airflow.
Soil Prevention Setting
This setting directs airflow away from the ceiling to prevent dust build-up and other marking. When it is selected, the flap arc is limited to a range of 25 to 60 degrees1. The result is a cleaner ceiling which requires minimal maintenance.
Free Installation Position
Air discharge patterns including two to four directions can be selected according to the installation position.
Hot Start Function
After defrosting or when starting heating operation, air is preheated before discharge to prevent uncomfortable cold drafts.
Daikin FFA50RV1A 5.0kW Multi Reverse Cycle Compact Cassette Indoor Unit Only
INCLUDED
FFA50RV1A-DAIKIN MULTI COMP. CASSETTE IND 5.0KW
Daikin-Multi-Cassette-Indoor System -Brochure
Daikin-Multi-Cassette-Indoor System -Operation Manual
