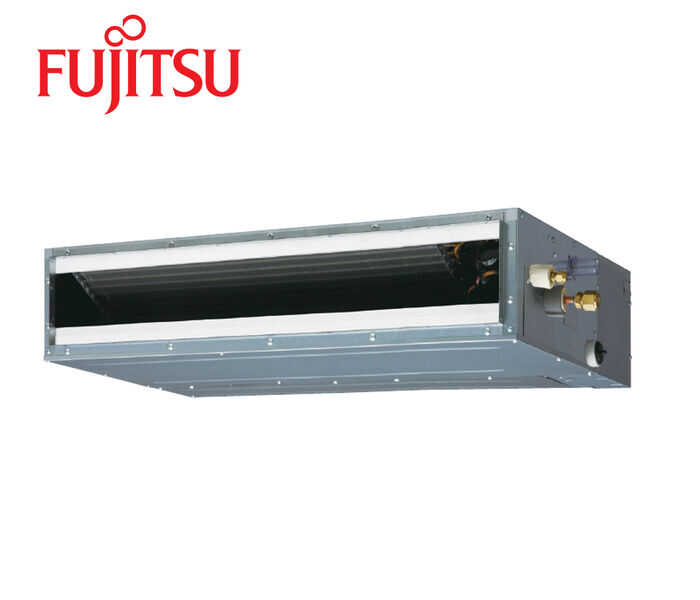

Fujitsu ARTH09KLLAP 2.5kW Multi Ducted Bulkhead Indoor Unit

$810.00

Fujitsu ARTH09KLLAP
2.5kW Multi Ducted Bulkhead Indoor Unit Only

2.5kW Cooling | 3.0kW Heating

Refrigerant Type: R32

Add to wishlist
SKU: ARTH09KLLAP Category:

SPECIFICATIONS

Model Number

Operation Type

 ARTH09KLLAP

Reverse Cycle
Power Source V/Ph/Hz 230 / 1 / 50
Capacity Class kW 2.5
Running Current amps (Cooling / Heating) 0.3 / 0.3
Indoor Sound Pressure Cooling dBA (High / Quiet) 28 / 24
Indoor Sound Pressure Heating dBA (High / Quiet) 28 / 24
Static Pressure Range PA (Min to Max) 0 to 90
Air Circulation (Indoor – High Fan) Cooling l/sec 167
Air Circulation (Indoor – High Fan) Heating l/sec 167
Indoor Unit Dimensions mm (Height x Width x Depth) 198 x 700 x 620
Indoor Unit Weight kg 17.00
Piping Connects mm Ø (Liquid / Gas) 6.35 / 9.52
Operation Range Cooling °CDB (Min to Max) 18 to 32
Operation Range Heating °CDB (Min to Max) 16 to 30
Refrigerant Type R32

FEATURES

Auto Changeover

The unit automatically switches between operating modes based on the temperature setting and room temperature.

Auto Restart

Should there be a temporary loss of power, the unit will automatically restart itself in the same operating mode, once the power is restored.

On-Off Timer

ON-OFF timer can be set to operate once every 24 hours.

Economy Mode

Limits the maximum operation current, and performs operation with the power consumption suppressed.

Program Timer

This timer allows selection of one of four options. ON, OFF, ON ––> OFF, or OFF ––> ON.

Weekly Timer

Different ON-OFF times can be set for up to 7 days.

Sleep Timer

The micro-processor gradually changes the room temperature, allowing you to sleep comfortably at night.

Fujitsu ARTH09KLLAP 2.5kW Multi Ducted Bulkhead Indoor Unit Only

DESCRIPTION

INCLUDED

ARTH09KLLAP-FUJITSU BULKHEAD INDOOR UNIT 2.5KW R32

BROCHURE

FujitsuAirstage_Multi Type Ducted Bulkhead Indoor Systems-Brochure
FujitsuAirstage_Multi Type Ducted Bulkhead Indoor Systems-Operation Manual
