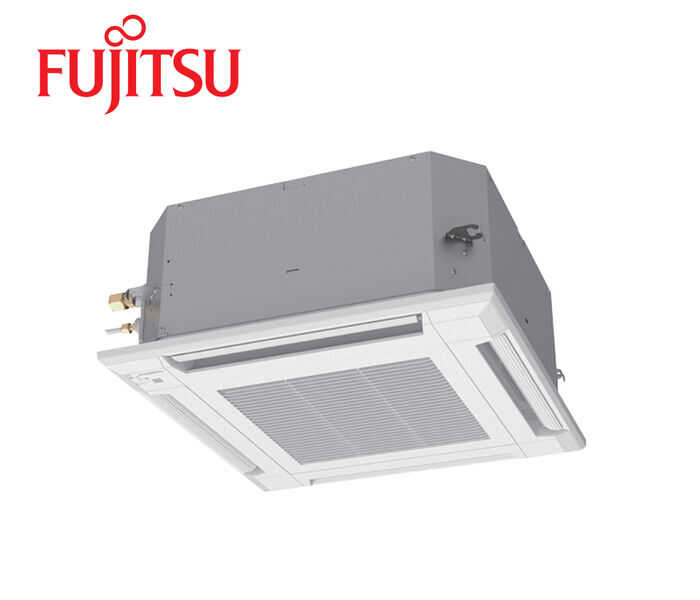

Fujitsu 5.0kW Multi Compact Cassette Indoor Unit

$961.00

Fujitsu AUTH18KVLA
5.0kW Multi Compact Cassette Indoor Unit Only

5.0kW Cooling | 5.5kW Heating

Refrigerant Type: R32



SKU: AUTH18KVLA / Grille: UTG-UFYF-W Category:

SPECIFICATIONS

Model NumberOperation Type AUTH18KVLA

Reverse Cycle

Power Source V/Ph/Hz 230 / 1 / 50
Capacity Class kW 5
Running Current amps (Cooling / Heating) 0.3 / 0.3
Indoor Sound Pressure Cooling dBA (High / Quiet) 42 / 29
Indoor Sound Pressure Heating dBA (High / Quiet) 44 / 30
Air Circulation (Indoor – High Fan) Cooling l/sec 208
Air Circulation (Indoor – High Fan) Heating l/sec 222
Indoor Unit Dimensions mm (Height x Width x Depth) 245 x 570 x 570
Indoor Unit Weight kg 15.00
Piping Connects mm Ø (Liquid / Gas) 6.35 / 12.7
Operation Range Cooling °CDB (Min to Max) 18 to 32
Operation Range Heating °CDB (Min to Max) 16 to 30
Refrigerant Type R32

FEATURES

Auto Changeover

The unit automatically switches between operating modes based on the temperature setting and room temperature.

Auto Restart

Should there be a temporary loss of power, the unit will automatically restart itself in the same operating mode, once the power is restored.

Filter Sign

Select appropriate intervals for displaying the filter sign on the indoor unit according to the estimated amount of dust in the air of the room.

On-Off Timer

ON-OFF timer can be set to operate once every 24 hours.

Program Timer

This timer allows selection of one of four options. ON, OFF, ON ––> OFF, or OFF ––> ON.

Super Quiet Mode

The indoor units fan can operate at a low speed to produce quieter operation.

Washable Panel

Dust that accumulates on the air conditioner can be easily cleaned with a damp cloth.

Automatic Louvre

The position of the louvres is set automatically to match the operating mode. It is also possible to adjust the louvres using the remote control.

Sleep Timer

The micro-processor gradually changes the room temperature, allowing you to sleep comfortably at night.

Economy Mode

Limits the maximum operation current, and performs operation with the power consumption suppressed.

Fujitsu AUTH18KVLA 5.0kW Multi Compact Cassette Indoor Unit Only

DESCRIPTION

INCLUDED

AUTH18KVLA -FUJITSU COMPACT CASSETTE IND 5.0KW 1PH R32

BROCHURE

FujitsuAirstage_Multi Type Cassette Indoor Systems-Brochure
FujitsuAirstage_Multi Type Cassette Indoor Systems-Operation Manual
