Fujitsu CS 5.0kW Compact Cassette Air Conditioning System

$2,964.00

Fujitsu AUTH18KVLA

5.0kW Compact Cassette Air Conditioning System | R32

5.0kW Cooling | 6.0kW Heating

Indoor AUTH18KVLA | Outdoor AOTH18KBTA

Grille-UTG-UFYF-W

WIRELESS CONTROLLER

3.45 Star Energy Rating

SKU: AUTH18KVLA Categories: ,

SPECIFICATIONS

Indoor unit AUTH18KVLA

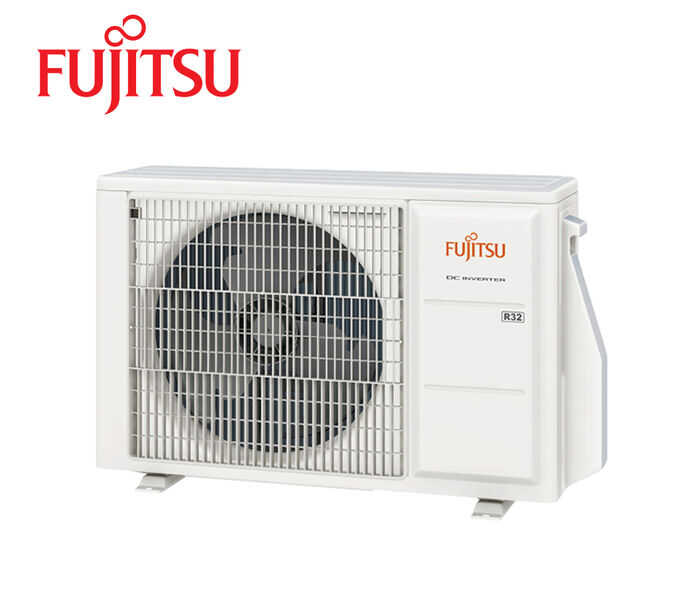

Outdoor unit AOTH18KBTA
Operation Type Reverse Cycle
Power Source V/Ph/Hz 240 / 1 / 50
Cooling Capacity kW (Rated (Min – Max)) 5.00 (0.9 – 5.9)
Heating Capacity kW (Rated (Min – Max)) 6.00 (0.9 – 7.1)
Input Power Cooling kW (Rated (Max)) 1.45 (2.39)
Input Power Heating kW (Rated (Max)) 1.71 (2.78)
EER Cooling kW/kW 3.45
COP Heating kW/kW 3.51
Star Rating Cooling (0-10) (Hot / Average / Cold) 3 / 2.5 / 2.5
Star Rating Heating (0-10) (Hot / Average / Cold) 3 / 2 / 1.5
Total Cooling Seasonal Performance Factor Residential kW (Hot / Average / Cold) 4.666 / 4.325 / 4.474
Heating Seasonal Performance Factor Residential kW (Hot / Average / Cold) 4.574 / 3.954 / 3.376
Total Cooling Seasonal Performance Factor Commercial kW (Hot / Average / Cold) 5.002 / 5.085 / 5.426
Heating Seasonal Performance Factor Commercial kW (Hot / Average / Cold) 4.586 / 4.21 / 3.709
Running Current amps (Cooling / Heating) 6.2 / 7.3
Moisture Removal l/hr 2
Indoor Sound Pressure Cooling dBA (High / Quiet) 38 / 26
Indoor Sound Pressure Heating dBA (High / Quiet) 43 / 30
Outdoor Sound Pressure dBA (Cooling / Heating) 48 / 49
Outdoor Sound Power dBA 62
Air Circulation (Indoor – High Fan) Cooling l/sec 189
Air Circulation (Indoor – High Fan) Heating l/sec 189
Indoor Unit Dimensions mm (Height x Width x Depth) 245 x 570 x 570
Indoor Unit Weight kg 15.00
Outdoor Unit Dimensions mm (Height x Width x Depth) 632 x 799 x 290
Outdoor Unit Weight kg 36.00
Grill Dimensions mm (Height x Width x Depth) 49 x 620 x 620
Grill Weight kg 2.30
Piping Connects mm Ø (Liquid / Gas) 6.35 / 12.7
Pipe Length m (Max (Precharged)) 30 (20)
Max Height Difference m 20
Operation Range Cooling °CDB (Min to Max) -10 to 46
Operation Range Heating °CDB (Min to Max) -15 to 24
Refrigerant Type R32
Refrigerant Amount g 1,020

FEATURES

Easy installation and compact design. These compact cassette models are extremely discreet with a non-intrusive grille design that sits level with the ceiling. Air can be distributed throughout the space in up to four directions.

All DC

With All DC, electricity loss is decreased and power consumption reduced.

Auto Restart

Should there be a temporary loss of power, the unit will automatically restart itself in the same operating mode, once the power is restored.

Auto Changeover

The unit automatically switches between operating modes based on the temperature setting and room temperature.

Automatic Air Flow Adjustment

The micro-processor automatically adjusts the air flow to follow changes in room temperature.

Automatic Louvre

The position of the louvres is set automatically to match the operating mode. It is also possible to adjust the louvres using the remote control.

Blue Fin Heat Exchanger

Corrosion-resistance of the heat exchanger in coastal areas has been improved by blue fin treatment of the outdoor unit heat exchanger.

Economy Mode

Limits the maximum operation current, and performs operation with the power consumption suppressed.

Filter Sign

Select appropriate intervals for displaying the filter sign on the indoor unit according to the estimated amount of dust in the air of the room.

i-PAM

i-PAM inverter technology enables high output and high efficiency performance.

On-Off Timer

ON-OFF timer can be set to operate once every 24 hours.

Program Timer

This timer allows selection of one of four options. ON, OFF, ON ––> OFF, or OFF ––> ON.

Removable Intake Grill

The indoor unit’s intake grille can be removed for easy cleaning and maintenance.

Sleep Timer

The micro-processor gradually changes the room temperature, allowing you to sleep comfortably at night.

Super Quiet Mode

The indoor units fan can operate at a low speed to produce quieter operation.

Up/Down Swing Louvre

The up/down louvre automatically swings up and down.

V-PAM

v-PAM inverter technology increases the maximum output of the compressor significantly and enables high power and high efficiency.

Washable Panel

Dust that accumulates on the air conditioner can be easily cleaned with a damp cloth.

10°C Heat Operation

The room temperature can be set to go no lower than 10°C, thus ensuring that the room does not get too cold when not occupied.

DESCRIPTION

INCLUDED

  • AUTH18KVLA – FUJITSU COMPACT CASSETTE IND 5KW 1PH R32
  • UTG-UFYF-W – FUJ CC FACIA PANEL 60X60CM AUTH
  • AOTH18KBTA – FUJITSU CASS/BH OUT 5KW 1PH R32

BROCHURE

operation-manual—auth-09-12-18-24-kvla-pdf
