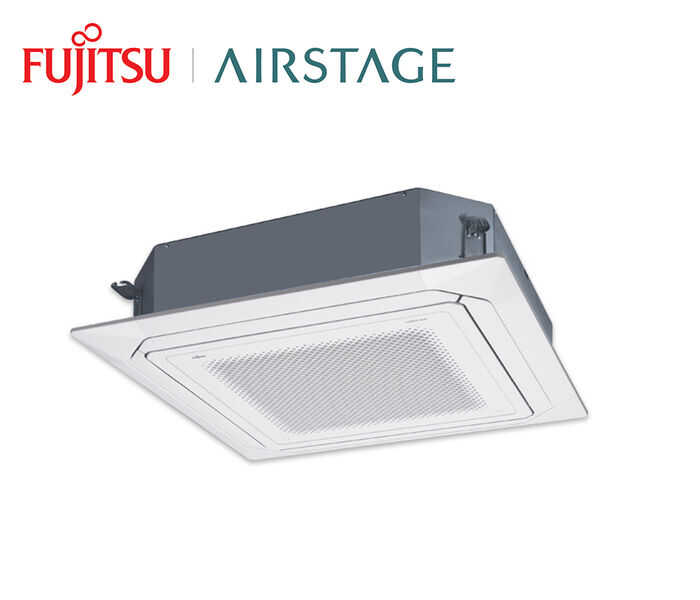

Fujitsu CS 7.1kW Cassette Air Conditioning System

$3,275.00

Fujitsu CS AUTH24KRTA

7.1kW Cassette Air Conditioning System | 1 Phase

Indoor AUTH24KRTA  | Outdoor AOTH24KBTA| R32

Grille UTG-UKTB-W | RECEIVER KIT: UTY-LBTYC

7.1 kW Cooling  | 8.0 kW Heating

3.3 Star Energy Rating

SKU: AUTH24KRTA-YC Categories: ,

SPECIFICATIONS

Indoor unit AUTH24KRTA
Outdoor unit AOTH24KBTA
Operation Type Reverse Cycle
Power Source V/Ph/Hz 230 / 1 / 50
Cooling Capacity kW (Rated (Min – Max)) 7.10 (1.8 – 8.1)
Heating Capacity kW (Rated (Min – Max)) 8.00 (2 – 9.1)
Input Power Cooling kW (Rated (Max)) 2.15 (2.73)
Input Power Heating kW (Rated (Max)) 2.1 (2.59)
EER Cooling kW/kW 3.3
COP Heating kW/kW 3.81
Star Rating Cooling (0-10) (Hot / Average / Cold) 3 / 3 / 3
Star Rating Heating (0-10) (Hot / Average / Cold) 3.5 / 2.5 / 2
Total Cooling Seasonal Performance Factor Residential kW (Hot / Average / Cold) 4.995 / 4.697 / 4.992
Heating Seasonal Performance Factor Residential kW (Hot / Average / Cold) 5.398 / 5.615 / 6.087
Total Cooling Seasonal Performance Factor Commercial kW (Hot / Average / Cold) 5.398 / 5.615 / 6.087
Heating Seasonal Performance Factor Commercial kW (Hot / Average / Cold) 5.237 / 4.747 / 4.131
Running Current amps (Cooling / Heating) 9.4 / 9.2
Moisture Removal l/hr 3.1
Indoor Sound Pressure Cooling dBA (High / Quiet) 35 / 30
Indoor Sound Pressure Heating dBA (High / Quiet) 35 / 30
Outdoor Sound Pressure dBA (Cooling / Heating) 48 / 50
Outdoor Sound Power dBA 68
Air Circulation (Indoor – High Fan) Cooling l/sec 300
Air Circulation (Indoor – High Fan) Heating l/sec 300
Indoor Unit Dimensions mm (Height x Width x Depth) 246 x 840 x 840
Indoor Unit Weight kg 24.00
Outdoor Unit Dimensions mm (Height x Width x Depth) 716 x 820 x 315
Outdoor Unit Weight kg 42.00
Grill Weight kg 6.00
Piping Connects mm Ø (Liquid / Gas) 6.35 / 12.7
Pipe Length m (Max (Precharged)) 30 (20)
Max Height Difference m 25
Operation Range Cooling °CDB (Min to Max) -10 to 50
Operation Range Heating °CDB (Min to Max) -15 to 24
Refrigerant Type R32
Refrigerant Amount g 1,250

FEATURES

Key features

Features a seamless airflow design that allows air to be directed to every corner of the room.



Auto Restart

Should there be a temporary loss of power, the unit will automatically restart itself in the same operating mode, once the power is restored.



Auto Changeover

The unit automatically switches between operating modes based on the temperature setting and room temperature.



Automatic Air Flow Adjustment

The micro-processor automatically adjusts the air flow to follow changes in room temperature.



Automatic Louvre

The position of the louvres is set automatically to match the operating mode. It is also possible to adjust the louvres using the remote control.



Blue Fin Heat Exchanger

Corrosion-resistance of the heat exchanger in coastal areas has been improved by blue fin treatment of the outdoor unit heat exchanger.



Circular Flow Distribution

Creates a consistent and even temperature via multi-directional 360˚ airflow functionality.



Demand Response

This product is designed to be compatible with Air Conditioning Demand Response program. When your electricity supplier activates one of the three modes the air conditioner switches over to the appropriate operation.



Economy Mode

Limits the maximum operation current, and performs operation with the power consumption suppressed.



Filter Sign

Select appropriate intervals for displaying the filter sign on the indoor unit according to the estimated amount of dust in the air of the room.



On-Off Timer

ON-OFF timer can be set to operate once every 24 hours.



Program Timer

This timer allows selection of one of four options. ON, OFF, ON ––> OFF, or OFF ––> ON.



Sleep Timer

The micro-processor gradually changes the room temperature, allowing you to sleep comfortably at night.



Washable Panel

Dust that accumulates on the air conditioner can be easily cleaned with a damp cloth.



Weekly Timer

Different ON-OFF times can be set for up to 7 days.



10°C Heat Operation

The room temperature can be set to go no lower than 10°C, thus ensuring that the room does not get too cold when not occupied.



DESCRIPTION

INCLUDED

  • UTG-UKTB-W – FUJ FASCIA PANEL 95x95CM AUTH
  • AOTH24KBTA – FUJITSU DUCTED OUT 7.1KW 1PH R32
  • AUTH24KRTA – FUJITSU CASSETTE IND 7.1KW R32 N/C
  • UTY-LBTYC – FUJ IR RECEIVER KIT

BROCHURE

operation-manual—auth-24-30-36-45-54-krta-pdf
