Fujitsu FC 2.5kW Inverter Floor Console System

$1,788.00

Fujitsu FC AOTG09KVCA/AGTG09KVCA
2.5kW Inverter Floor Console System | R32

Includes Indoor AGTG09KVCA | Outdoor AOTG09KVCA

2.5kW Cooling – 3.5kW Heating

Apple-Catechin Filter | Long-Life Ion Deodorisation Filter | Connect Kit

5 Star Energy Rating

SKU: SET-AGTG09KVCA Categories: ,

SPECIFICATIONS

Indoor unit AGTG09KVCA

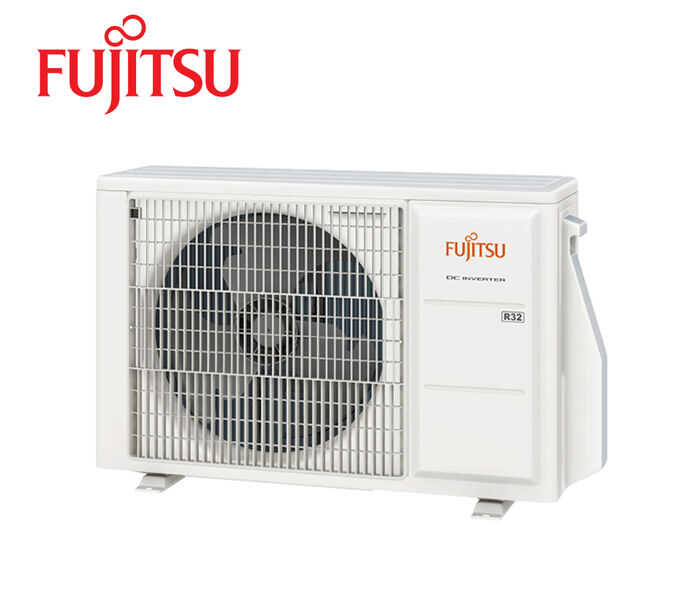

Outdoor unit AOTG09KVCA
Operation Type Reverse Cycle
Power Source V/Ph/Hz 240 / 1 / 50
Cooling Capacity kW (Rated (Min – Max)) 2.50 (0.9 – 3.5)
Heating Capacity kW (Rated (Min – Max)) 3.50 (0.9 – 5.3)
Input Power Cooling kW (Rated (Max)) 0.53 (1.32)
Input Power Heating kW (Rated (Max)) 0.85 (1.66)
EER Cooling kW/kW 4.7
COP Heating kW/kW 4.27
Star Rating Cooling (0-10) (Hot / Average / Cold) 5.5 / 5 / 5
Star Rating Heating (0-10) (Hot / Average / Cold) 3 / 3 / 2.5
Total Cooling Seasonal Performance Factor Residential kW (Hot / Average / Cold) 7.172 / 6.564 / 6.884
Heating Seasonal Performance Factor Residential kW (Hot / Average / Cold) 4.95 / 4.511 / 4.03
Total Cooling Seasonal Performance Factor Commercial kW (Hot / Average / Cold) 8.124 / 8.594 / 9.852
Heating Seasonal Performance Factor Commercial kW (Hot / Average / Cold) 4.948 / 4.679 / 4.269
Running Current amps (Cooling / Heating) 3 / 4
Moisture Removal l/hr 1.3
Indoor Sound Pressure Cooling dBA (High / Quiet) 40 / 22
Indoor Sound Pressure Heating dBA (High / Quiet) 41 / 22
Outdoor Sound Pressure dBA (Cooling / Heating) 43 / 47
Outdoor Sound Power dBA 58
Air Circulation (Indoor – High Fan) Cooling l/sec 158
Air Circulation (Indoor – High Fan) Heating l/sec 167
Indoor Unit Dimensions mm (Height x Width x Depth) 600 x 740 x 200
Indoor Unit Weight kg 14.00
Outdoor Unit Dimensions mm (Height x Width x Depth) 542 x 799 x 290
Outdoor Unit Weight kg 31.00
Piping Connects mm Ø (Liquid / Gas) 6.35 / 9.52
Pipe Length m (Max (Precharged)) 20 (15)
Max Height Difference m 15
Operation Range Cooling °CDB (Min to Max) -10 to 46
Operation Range Heating °CDB (Min to Max) -15 to 24
Refrigerant Type R32

FEATURES

All DC
With All DC, electricity loss is decreased and power consumption reduced.
Apple-Catechin Filter

Fine dust, invisible mould spores and harmful microorganisms are absorbed onto the filter by static electricity and further growth is inhibited and deactivated by the polyphenol ingredient extracted from apples.

Auto Restart

Should there be a temporary loss of power, the unit will automatically restart itself in the same operating mode, once the power is restored.

Auto Shut Louvre

The auto shut louvres close or open automatically when the unit stops or starts.

Auto Changeover

The unit automatically switches between operating modes based on the temperature setting and room temperature.

Automatic Air Flow Adjustment

The micro-processor automatically adjusts the air flow to follow changes in room temperature.

Automatic Louvre

The position of the louvres is set automatically to match the operating mode. It is also possible to adjust the louvres using the remote control.

Blue Fin Heat Exchanger

Corrosion-resistance of the heat exchanger in coastal areas has been improved by blue fin treatment of the outdoor unit heat exchanger.

Economy Mode

Limits the maximum operation current, and performs operation with the power consumption suppressed.

Long-Life Ion Deodorisation Filter

The filter deodorises by powerfully decomposing absorbed odours using the oxidising and reducing effects of ion generated by the ultra-fine particle ceramic.

On-Off Timer

ON-OFF timer can be set to operate once every 24 hours.

Powerful Mode

Powerful mode will operate the indoor unit fan and outdoor unit compressor at maximum operation to quickly make the room conditioned and comfortable.

Program Timer

This timer allows selection of one of four options. ON, OFF, ON ––> OFF, or OFF ––> ON.

Sleep Timer

The micro-processor gradually changes the room temperature, allowing you to sleep comfortably at night.

Super Quiet Mode

The indoor units fan can operate at a low speed to produce quieter operation.

Up/Down Swing Louvre

The up/down louvre automatically swings up and down.

V-PAM

v-PAM inverter technology increases the maximum output of the compressor significantly and enables high power and high efficiency.

Washable Panel

Dust that accumulates on the air conditioner can be easily cleaned with a damp cloth.

Weekly Timer

Different ON-OFF times can be set for up to 7 days.

Connect Kit

10°C Heat Operation

The room temperature can be set to go no lower than 10°C, thus ensuring that the room does not get too cold when not occupied.

Outdoor Unit Low Noise Mode

The compressor speed and the outdoor unit fan speed are limited to reduce the operational noise.

Gas(Refrigerant) detector

0.5°C Increments
Fujitsu FC AOTG09KVCA/AGTG09KVCA 2.5kW Inverter Floor Console System | R32

DESCRIPTION

INCLUDED

AOTG09KVCA – FUJITSU FLOOR CONSOLE OUT 2.5KW 1PH R32

AGTG09KVCA – FUJITSU FLOOR CONSOLE IND 2.5KW 1PH R32

BROCHURE

Fujitsu Floor Console-Brochure
Fujitsu Floor Console-Operating Manual
