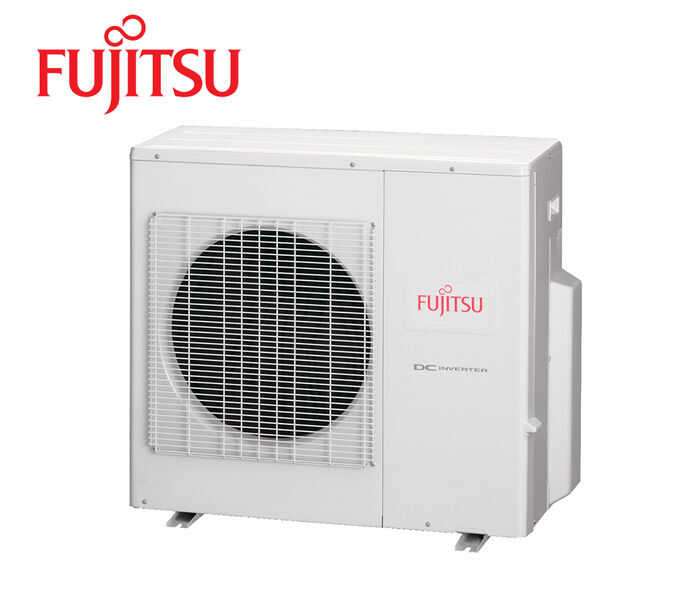

Fujitsu MHS 10.0kW Multi Type Air Conditioner | Outdoor Only

$3,374.00

Fujitsu AOTG36LBLA5
10.0kW Multi Type Air Conditioner R410A Outdoor Only | 2 to 5 Rooms

Max Connectable indoor units: 5

10.0 kW Cooling | 12.0 kW Heating

4 Star Energy Rating

SPECIFICATIONS

Model Number Operation Type	AOTG36LBLA5 Reverse Cycle
Maximum Connectable Indoor Units	5
Power Source V/Ph/Hz	230 / 1 / 50
Capacity Class kW	10
Cooling Capacity kW (Rated (Min – Max))	10.00 (3.5 – 12.5)
Heating Capacity kW (Rated (Min – Max))	12.00 (3.5 – 14)
Input Power Cooling kW (Rated (Max))	2.44 (4.04)
Input Power Heating kW (Rated (Max))	2.79 (3.98)
EER Cooling kW/kW	4.1
COP Heating kW/kW	4.3
Total Cooling Seasonal Performance Factor Residential kW (Hot / Average / Cold)	5.779 / 5.258 / 5.441
Heating Seasonal Performance Factor Residential kW (Hot / Average / Cold)	5.242 / 4.75 / 4.398
Total Cooling Seasonal Performance Factor Commercial kW (Hot / Average / Cold)	6.249 / 6.36 / 6.805
Heating Seasonal Performance Factor Commercial kW (Hot / Average / Cold)	5.247 / 4.954 / 4.63
Outdoor Sound Pressure dBA (Cooling / Heating)	52 / 54
Outdoor Sound Power dBA	68
Outdoor Unit Dimensions mm (Height x Width x Depth)	998 x 970 x 370
Outdoor Unit Weight kg	93.00
Pipe Length m (Max (Precharged))	80 (50)
Operation Range Cooling °CDB (Min to Max)	-10 to 46
Operation Range Heating °CDB (Min to Max)	-15 to 24
Refrigerant Type	R410A
Refrigerant Amount g	4,000

FEATURES

Wide Range of Options

Fujitsu General have extended their line-up of R32 products with the launch of the new 3 and 4 rooms multi system outdoor units. The use of R32 refrigerant improves heat transfer and compared to the commonly used R410A refrigerant, has a 67 per cent¹ lower ‘Global Warming Potential Factor’ whilst still maintaining the performance of the unit. The 3 room outdoor unit has a rated cooling capacity of 6.8kW and the 4 room outdoor unit has a rated cooling capacity of 8.0kW.

Extensive indoor unit line-up

The range of connectable R32 indoor units on the 3 and 4 rooms multi system has been extended to 23 models across 6 different styles including wall mounted, bulkhead, slimline, mini duct, compact cassette and floor mounted, giving consumers an extensive range to choose from to suit their individual room requirements. The indoor units can be controlled individually via a remote control or simultaneously via a central controller.

Flexible Installation

Due to the latest design, flexible installation of the outdoor unit is possible even in limited and narrow spaces.

23 indoor units to choose from
Space saving – requires only one outdoor unit
Individual room temperature control
R32 refrigerant
Central controller option
Easy installation and setup

Fujitsu AOTG36LBLA5 10.0kW Multi Type Air Conditioner R410A Outdoor Only
