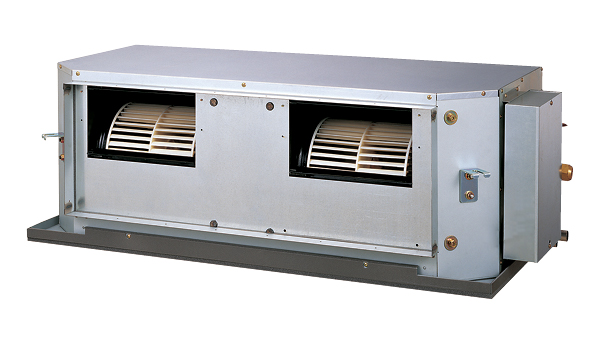

Fujitsu SDR 8.5kW High Static-High Performance Ducted AC System

$3,722.00

Fujitsu SET-ARTH30KHTA-HP
8.5kW High Static Ducted AC System | 1 Phase (High Performance)

8.5 kW Cooling |10.0 kW Heating

Indoor: ARTH30KHTA Outdoor: AOTH30KCTA

Wired Remote Controller : UTY-RNRT – Backlit Touch Panel Wall Controller
R32 Refrigerant

3 Star Energy Rating

SPECIFICATIONS

Indoor unit	ARTH30KHTA
Outdoor unit	AOTH30KCTA
Operation Type	Reverse Cycle
Power Source V/Ph/Hz	230 / 1 / 50
Cooling Capacity kW (Rated (Min – Max))	8.50 (4.1 – 11)
Heating Capacity kW (Rated (Min – Max))	10.00 (4.2 – 12)
Input Power Cooling kW (Rated (Max))	2.18 (3.36)
Input Power Heating kW (Rated (Max))	2.2 (3.12)
EER Cooling kW/kW	3.9
COP Heating kW/kW	4.55
Star Rating Cooling (0-10) (Hot / Average / Cold)	3 / 3 / 3
Star Rating Heating (0-10) (Hot / Average / Cold)	3 / 3 / 2
Total Cooling Seasonal Performance Factor Residential kW (Hot / Average / Cold)	4.833 / 4.593 / 4.727
Heating Seasonal Performance Factor Residential kW (Hot / Average / Cold)	4.856 / 4.509 / 3.994
Total Cooling Seasonal Performance Factor Commercial kW (Hot / Average / Cold)	5.108 / 5.148 / 5.458
Heating Seasonal Performance Factor Commercial kW (Hot / Average / Cold)	4.843 / 4.624 / 4.201
Running Current amps (Cooling / Heating)	9.6 / 9.7
Moisture Removal l/hr	0.1
Indoor Sound Pressure Cooling dBA (High / Quiet)	41 / 36
Indoor Sound Pressure Heating dBA (High / Quiet)	41 / 36
Outdoor Sound Pressure dBA (Cooling / Heating)	51 / 53
Outdoor Sound Power dBA	69
Static Pressure Range PA (Min to Max)	60 to 210
Air Circulation (Indoor – High Fan) Cooling l/sec	695
Air Circulation (Indoor – High Fan) Heating l/sec	695
Indoor Unit Dimensions mm (Height x Width x Depth)	400 x 1050 x 500
Indoor Unit Weight kg	39.00
Outdoor Unit Dimensions mm (Height x Width x Depth)	998 x 940 x 320
Outdoor Unit Weight kg	64.00
Piping Connects mm Ø (Liquid / Gas)	9.52 / 15.88
Pipe Length m (Max (Precharged))	75 (30)
Max Height Difference m	30
Operation Range Cooling °CDB (Min to Max)	-10 to 50
Operation Range Heating °CDB (Min to Max)	-15 to 24
Refrigerant Type	R32
Refrigerant Amount g	2,100

FEATURES

The High Static Single Phase R32 range is available in six models, ranging in capacity from 7.1kW to 15.5kW. All models have a maximum guaranteed ambient operating temperature range of up to 50 degrees in cooling mode, have demand response, and are zone system compatible.

Zone Control

This function enables efficient air-conditioning by selecting specific zones from the various zones divided within the indoor space.

Auto Restart

Should there be a temporary loss of power, the unit will automatically restart itself in the same operating mode, once the power is restored.

Auto Changeover

The unit automatically switches between operating modes based on the temperature setting and room temperature.

Blue Fin Heat Exchanger

Corrosion-resistance of the heat exchanger in coastal areas has been improved by blue fin treatment of the outdoor unit heat exchanger.

Connectable Distributing Duct

Systems are capable of attaching a field-supplied branch ducts distributing the airflow. Connectable Fresh Air Duct Allows introduction of fresh air to the occupied space.

Demand Response

This product is designed to be compatible with Air Conditioning Demand Response program. When your electricity supplier activates one of the three modes the air conditioner switches over to the appropriate operation.

Economy Mode

Limits the maximum operation current, and performs operation with the power consumption suppressed.

Filter Sign

Select appropriate intervals for displaying the filter sign on the indoor unit according to the estimated amount of dust in the air of the room.

On-Off Timer

ON-OFF timer can be set to operate once every 24 hours.

Program Timer

This timer allows selection of one of four options. ON, OFF, ON ––> OFF, or OFF ––> ON.

Weekly Timer

Different ON-OFF times can be set for up to 7 days.

In-Built Drain Pump

The drain pump is in-built into the system.

Operating Temperature Range 50°C

The maximum guaranteed operating temperature range to 50 degrees in cooling mode.

Demo Mode

This function allows the indoor unit to be operated alone at exhibitions and showrooms.

Automatic Static Pressure Setting Adjustment

With this feature, the unit automatically sets the optimal static pressure setting, eliminating the need for the installer to select and set the static pressure setting each time.
