$744.00

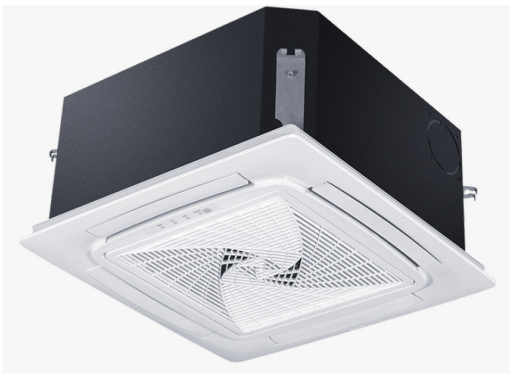

Haier AB35S2PC1FA
3.5 kW Multi 4 Way Compact Cassette Indoor Unit Only
3.5 kW Cooling |4.0 kW Heating
R32 refrigerant
| INSTALLATION
Pipe size gas:9.52mm Pipe size liquid:6.35mm |
| PERFORMANCE
Airflow:620m3/h Indoor sound pressure SPL:36 / 33 / 30 / 27dBA R32 Refrigerant: Sound power:52dBA
|
| POWER REQUIREMENTS
Power phase:Single phase Supply frequency:50Hz Supply voltage:220-240V |
| PRODUCT DIMENSIONS
Depth:260mm Height:570mm Net weight:18.5kg Width:570mm |
Installation flexibility
Models AB25, AB35 and AB50 are 570 x 570mm for easy installation into a 600mm ceiling grid.
High lift drain pump
This model includes a built-in condensate drain pump with 750mm lift height to suit your installation.
Branch air outlet
An optional second branch outlet provides further air distribution.
Quiet operation
A helix fan blade and diffuser are designed for quiet operation.
Fresh air inlet
Fresh air knockout is incorporated in the chassis allowing introduction of fresh air at a rate of up to 20% of airflow without compromising cooling capacity.
Easy access to electrical box
The electrical box is located inside the unit, removing the need for a ceiling access panel to be fitted
Haier AB35S2PC1FA 3.5 kW Multi 4 Way Compact Cassette Indoor Unit Only
INCLUDED
AB35S2PC1FA-HAIER 3.5KW 4-WAY CASS MH IDU R32
Haier-Multi Split-4Way Cassette Indoor Unit-Brochure
Haier-Multi Split-4Way Cassette Indoor Unit-Operation & Installation Manual
