$660.00

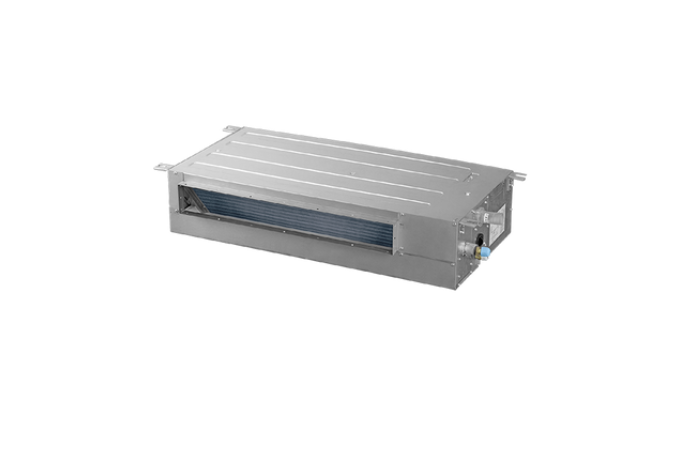

Haier AD71S2PS1FA
7.1 kW Multi Slim Ducted Indoor Unit Only
7.1 kW Cooling | 7.5 kW Heating
Super Match Slim Duct |R32
INSTALLATIONPipe size gas:15.88mm Pipe size liquid:9.52mm |
POWER REQUIREMENTSPower phase:Single phase Supply frequency:50Hz Supply voltage:220-240V |
PERFORMANCEAirflow:1000m3/h Indoor sound pressure SPL:46 / 44 / 42dBA Sound power:57dBA
|
PRODUCT DIMENSIONSDepth:420mm Height:185mm Net weight:25.2kg Width:1170mm |
Slim design
With a slim profile, this ducted indoor unit is ideal for installation in shallow ceiling cavities, such as between floors in multistorey buildings
High lift drain pump
This indoor unit has a condensate pump with 750mm lift height and a built-in fail-safe switch for reliable moisture removal in confined spaces
Left or right drain outlet
Drain direction can be left or right according to the layout
Efficient DC motor
DC fan motors are renowned for using less energy than a standard AC motor. They are also highly adjustable for better airflow and static pressure tuning to suit your installation
Return air choices
Clever design allows the rear return air to be easily converted to bottom return air to suit the installation
Haier AD71S2PS1FA 7.1 kW Multi Slim Ducted Indoor Unit Only
INCLUDED
AD71S2PS1FA-HAIER 7.1KW SLIM DUCT MH IDU R32
Haier-Multi Split-Ducted Indoor Unit-Brochure
Haier-Multi Split-Ducted Indoor Unit-Operation & Installation Manual
