Mitsubishi Electric MHS 10.0kW AC System Outdoor Only

$3,598.00

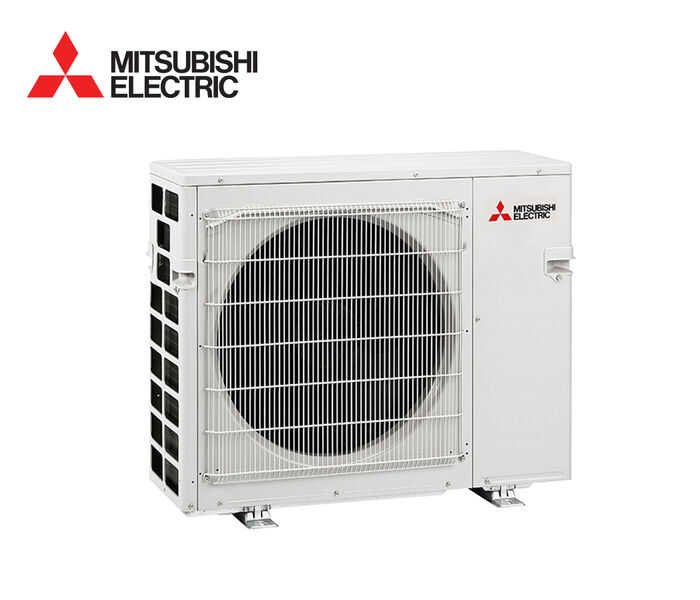

Mitsubishi Electric MXZ-5F100VGD-A1
10kW Multi Head System Outdoor Only

2 – 5 Port Multi R32 Outdoor

10.0 kW Cooling | 12.0 kW Heating

4 Star Energy Rating

SPECIFICATIONS

Series MXZ
Outdoor Unit MXZ-5F100 VGD-A1
Refrigerant R32
Precharge Refrigerant 2.4
Power Supply (V, Phase, Hz) 220V, single, 60Hz / 230V, single, 50Hz
Cooling Capacity [Min-RatedMax] kW 3.9 – 10.0 – 11.0
Total Input [Rated] kW 2.84
AEER/EER
Running Current [Rated] A [220V/60Hz – 230V/50Hz] 13.0 – 12.5
Sound Pressure Level Out [PWL] 65
Heating Capacity [Min-RatedMax] kW 4.1 – 10.0 – 14.0
Total Input [Rated] kW 2.07
ACOP/COP
Running Current [Rated] A [220V/60Hz – 230V/50Hz] 9.5 – 9.1
Sound Pressure Level Out [PWL] 67
Max. Running Current A
Breaker Size A
Outdoor Unit Dimensions [HxWxD] mm 796 x 950 x 330
Weight kg 62
Piping Diameter [Gas/Liquid] mm 9.52 x 4 + 12.7 x 1 / 6.35 x 5
Max. Length  [Total-Each] m 80 – 25
Max. Height m 15
Guaranteed Operating Range [Outdoor] Cooling °C -10 ~ 46
Heating °C -15 ~ 24



FEATURES

R32

R32 enables increased energy efficiency compared to R410A, with just one third of the global warming  potential, the risk of environmental harm is greatly reduced.

Operation Lock

To accommodate specific-use applications, cooling or heating operation can be specified when setting the control board of the outdoor unit. A convenient option when a system needs to be configured for exclusive cooling or heating service.

Slim, Sophisticated Design

Floor consoles feature a contemporary sleek design with linear beauty, harmonised with all types of interiors.

Rapid Heating Technology

KW Series ensures the perfect room temperature is reached faster with Rapid Heating Technology. Warm air is blown out in a downward direction and then sucked back into the unit to quickly raise the temperature of the air being blown out.

Multi Flow Vane

A powerful blower provides improved distribution of air from the upper and lower air outlets. The result is a comfortable environment with an even temperature throughout the room. Three uniquely shaped vanes control the airflow and allow the freedom to customise comfort according to preferences.

Mitsubishi Electric MXZ-5F100VGD-A1 10kW AC System Outdoor Only

DESCRIPTION

INCLUDED

MXZ-5F100VGD-A1 MITSUBISHI ELEC. MULTI OUT 10KW 1PH R32

BROCHURE

Mitsubishi Electric MXZ-5F100VGD-A1 10kW-Brochure
