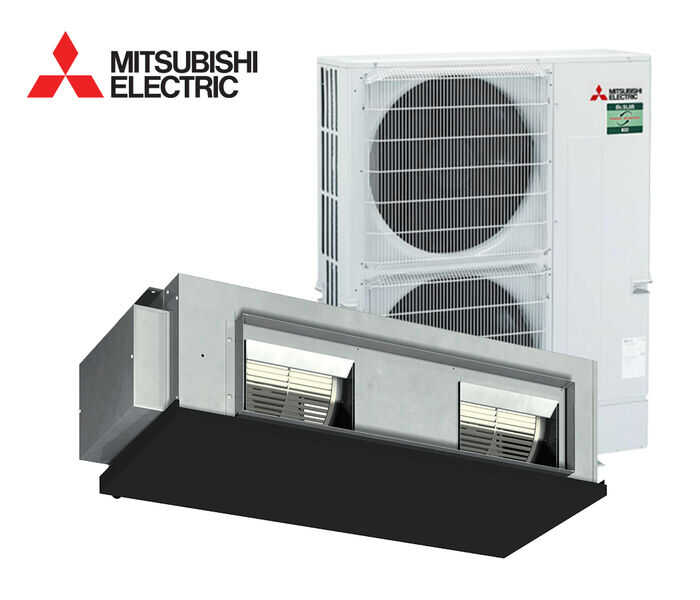

Mitsubishi Electric SDR 12.5kW PEA-M-GAA Series Ducted AC System

$4,598.00

MITSUBISHI ELECTRIC PEAM125GAAYKIT
12.5kW PEA-M-GAA Series Ducted Air Conditioning System 3 Phase

12.5kW Cooling | 14.0kW Heating

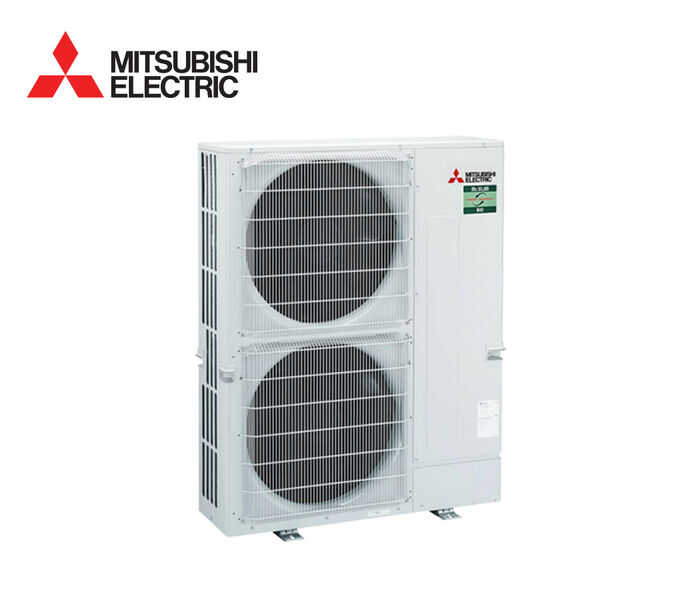

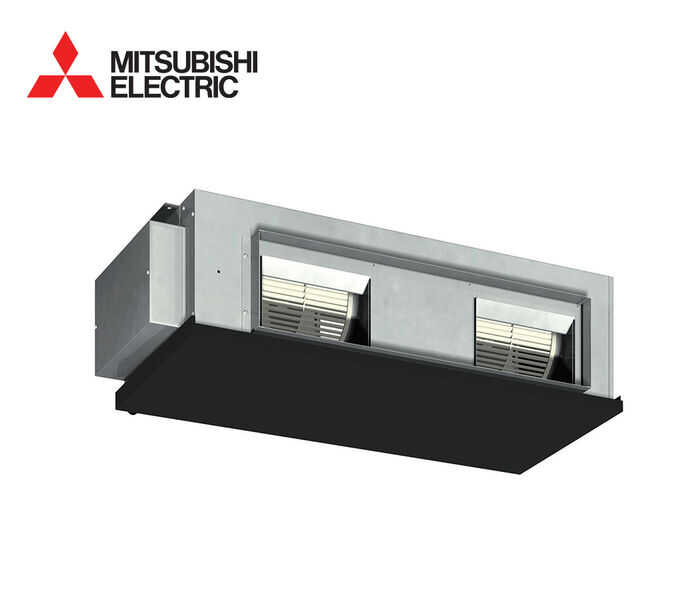

Indoor Unit PEA-M125GAA.TH | Outdoor Unit PUZ-ZM125YKA-A.TH

3.55 Stars Energy Ratings

SPECIFICATIONS

Ceiling-Concealed (PEA-M/ZM Series)
Indoor Unit				PEA-M125GAA
Outdoor Unit Refrigerant				PUZ-ZM 125YKA
				R32
Power Supply	Source			Outdoor power supply
	Outdoor			V: 230V, Single-phase, 50Hz Y: 400V, Three-phase, 50Hz
	Indoor			–
Cooling Heating	Capacity [Min-Rated-Max]		(kW)	5.5-12.5-14.0
	Total Input [Rated]		(kW)	3.52
	AEER/EER			3.40 / 3.55
	*AEER [Part-load %] 1**			–
	Running Current [Rated]		A	5.20
	Sound	In (Lo-Mid-Hi)	dB(A)	42 – 45
	Pressure Level	Out (PWL)		50 (70)
	Air Volume (In) Lo-Mid-Hi L/S			800 – 1000
	Capacity [Min-Rated-Max]		(kW)	5.0-14.0-16.0
	Total Input [Rated]		(kW)	3.27
	*ACOP/COP 3**			4.09 / 4.28
	Running Current [Rated]		(mm)	5.40
	Sound Pressure	In (Lo-Mid-Hi)	dB(A)	42 – 45
	Level	Out (PWL)	dB(A)	52 (70)
	Air Volume (In) Lo-Mid-Hi			800 – 1000
Max. Running Current			A	15.86
	Input [Rated]		kW	0.49 / 0.49
Indoor Unit	Dimensions [HxWxD]		mm	400 × 1400 × 634
	Weight		kg	63
	Static Pressure		Pa	50 / 100 / 150
Outdoor Unit	Dimensions [HxWxD]		mm	1338 × 1050 × 330 (+40)
	Weight		kg	114
	Breaker Size		A	16
Ext. Piping	Diameter [Gas/Liquid]		mm	15.88 / 9.52
	Max. Length/Height		m	75 / 30
Guaranteed Operating Range [Outdoor]		*Cooling 2**	°C	-5 (-15) ~ 52
		Heating	°C	-20 ~ 21
Supply Air Duct			mm	921 x 250
Return Air Duct			mm	1102 x 330
Precharge Refrigerant			kg	4 (30m)
Additional Refrigerant			Per M (g)

FEATURES

High external static pressure

External Static Pressure: 50/100/150 Pa

Flexible ducting design

With the flexibility of ducted design and 150Pa external static high-pressure are incorporated. The increased variation in airflow options ensures operation that best matches virtually all room layouts.

Longer maximum piping length

Refrigerant can be piped up to 75 metres to the concealed ceiling unit, therefore creating a wide range of layout possibilities for unit installation.

Optional PAR-40MAA Wall mounted controller

This attractive full dot liquid crystal display incorporates a large backlit screen and simple menus for easy operation. You can set up to 8 temperature and airflow patterns per day for seven days. Perfect for the busy home and office or retail store.

Optional zone controller

Upgrading to an optional zone controller gives the option of up to 4 or 8 zones, to provide control to different rooms of the home. Zone Controller is compatible with the optional Wi-Fi Control interface and app.

Wi-Fi Control

Unlock the door to smarter heating and cooling systems, for total home comfort. This innovative technology connects your Mitsubishi Electric air conditioner to your smartphone, tablet or online account, giving you the freedom to fully control each unit on-the-go via an internet connection from anywhere in the world.
*1 Optional Wi-Fi adapter required per unit. Requires an internet connection and the Wi-Fi Control App downloaded on your smartphone or tablet with the latest operating system available.
*2 To use Amazon Alexa to control your air conditioner you will need an Amazon Alexa Echo device.
*3 To use Google Assistant to control your air conditioner you will need a Google Home Smart speaker.

R32 refrigerant

R32 enables increased energy efficiency compared to R410A, with just one third of the global warming potential, the risk of environmental harm is greatly reduced.
