Mitsubishi Electric SDR 12.5kW PEAD-M-JAAS Low Profile Ducted AC System

$4,156.00

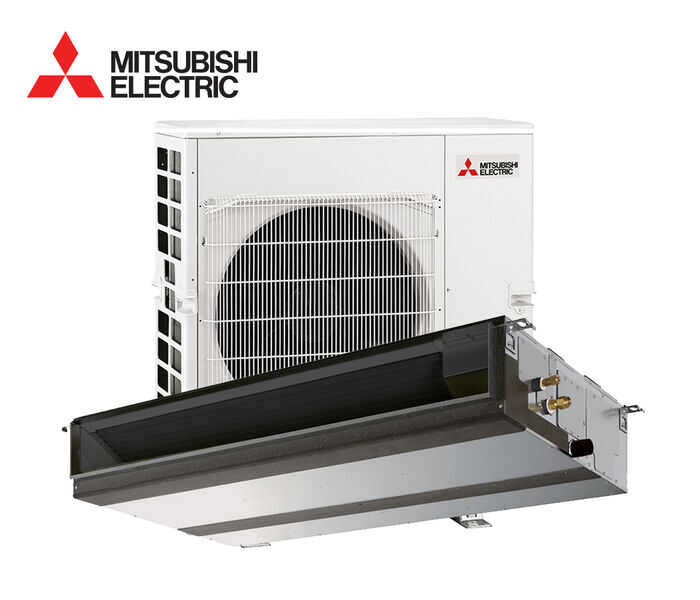

MITSUBISHI ELECTRIC PEAD-M125JAADR1.TH / PUZ-M125VKA-A.TH

12kW Ducted Air Conditioner System 1 Phase

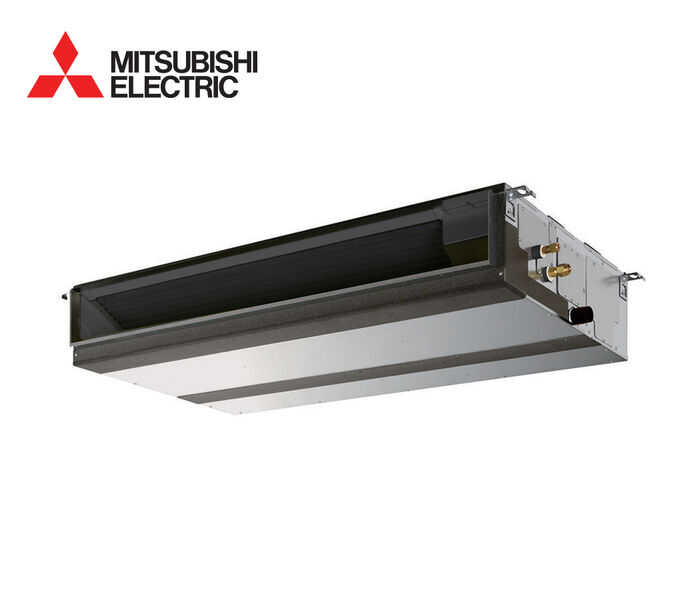

PEAD-M125JAADR1.TH : Indoor – Ducted with Drain Pump

PUZ-M125VKA-A.TH : R32 Inverter Outdoor – Single Phase

Low Profile Power Inverter

12.5 kW Cooling | 14.0 kW Heating

3.13 Stars Energy Ratings

SKU: PEAD-M125JAADR1.TH / PUZ-M125VKA-A.TH Categories: ,

SPECIFICATIONS

PEAD-M Series (Ceiling Concealed)
Indoor Unit PEAD-M125JAA(D)
Outdoor Unit PUZ-M125VKA
Refrigerant R32
Power Supply V: 230V, Single-phase, 50Hz
Cooling Capacity[Min-Rated-Max] kW 6.00 – 12.00 – 13.50
Total Input [Rated] kW 3.83
AEER/EER 3.03/3.13
AEER [Part-load %l*l A 3.78
Running Current [Ratedl*3 17.8
Sound Pressure Level In (Lo-Mid-Hi) dBA 36 – 40 – 44
Sound Pressure Level Out (PWL) dBA 54 (72)
Air Volume (In) Lo-Mid-Hi Lis 492 – 592 – 700
Heating Capacity [Min-Rated-Maxl kW 4.10 – 14.00 – 15.50
Total Input [Rated] kW 3.68
ACOP/COP A 3.67/3.80
ACOP [Part-load %l*l  –
 Running Current [Ratedl*4 17.1
Sound Pressure Level – In (Lo-Mid-Hi) dBA 36 -40 -44
Sound Pressure Level – Out (PWL) dBA 56 (74)
Air Volume (In) Lo-Mid-Hi Lis 492 – 592 – 700
Max. Running Current A 29.3
Indoor Unit Input [Rated] kW 0.36/0.34
Dimensions [HxWxDl mm 250 x 1400 x 732
Weight kg 40
Static Pressure pa 35/50/70/100/125
Outdoor Unit Dimensions [HxWxDl mm 981 x 1050 x 330 (+40)
Weight kg 84
Breaker Size A 32
Ext. Piping Diameter [Liquid/Gasl mm Ø9.52/Ø15.88
Max. Length/Height m 55/30
Guaranteed Operating Range [Outdoor] Cooling*2 oc  -5(-1 5) ~ 46
Heating oc  -15 ~21
Supply Air Duct mm 1360 x 178
Pre- Charge Refrigerant kg 3.60 (30m)
Additional Refrigerant g/m 200



FEATURES

Compact Design

With a new compact design that is suitable for smaller spaces, installation is more flexible and less obtrusive. The compact nature of the PUZ-M Series also makes transportation and handling easier. (Models PUZ-M100/125 only).



R32 refrigerant

R32 enables increased energy efficiency compared to R410A, with just one third of the global warming potential, the risk of environmental harm is greatly reduced.



Full Inverter

The Full Inverter ensures a high level of performance, including the finer control of operation frequency. As a result, improved power management is applied in all heating/cooling ranges and improved comfort is achieved while consuming less energy.



Guaranteed Operating Range

-5°C* to 46°C (Cooling), -5°C* to 21°C (Heating). Continue to operate when you need it most. *Optional air protection guide is required where ambient temperature is lower than -5°C.



Optional PAR-41MAA Wall mounted controller

This attractive full dot liquid crystal display incorporates a large backlit screen and simple menus for easy operation. You can set up to 8 temperature and airflow patterns per day for seven days. Perfect for the busy home and office or retail store.



Optional PAR-CT01MAA MA Touch Remote Controller

The full colour optional touch controller PAR-CT01MAA enables the control of both residential and commercial air conditioning applications. It has a customisable 3.5 inch colour LCD touch panel that makes it easy to use. Available in white or premium black finishes, suitable for any décor.



Demand Response Capable

Demand Response mode is activated in response to signals sent from the power distributor at times when it is necessary to reduce peak demand.



DESCRIPTION

INCLUDED

  • PUZ-M125VKA – MITSUBISHI ELEC. DUCT OUT 12.5KW 1P R32
  • PEAD-M125JAAD – MITSUBISHI ELEC. SLIM DUCTED IND 12.0KW

BROCHURE

Ducted-Air-Conditioning-Brochure-2023-12

Flyer_PUZ-M_Series-2020-10

Installation_Manual-PUZ-M100-140VKA-A_IM_BH79A571H01_2020

Mr_Slim-Air-Conditioning-Systems-Brochure-2023
