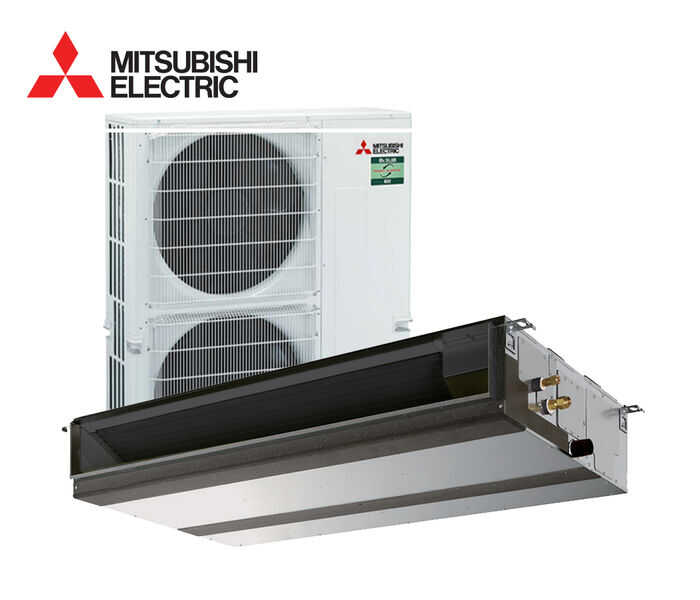

Name: Mitsubishi Electric SDR 12.5kW PEAD-ZM-JAAD Low Profile Ducted AC System - Heat Cool Shop
SKU: PEAD-M125JAADR1.TH / PUZ-ZM125VKA-A.TH / PAR-40MAA
Price: 5003.00 AUD
Availability: InStock

SPECIFICATIONS

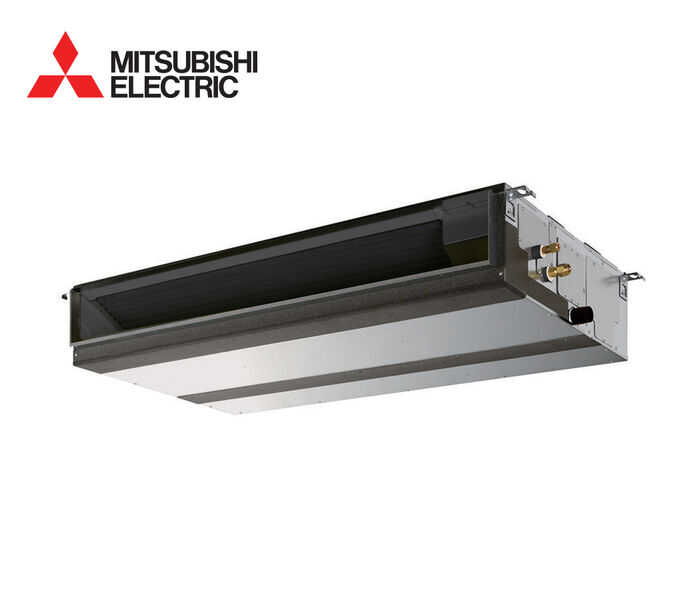

Ceiling-Concealed (PEAD-ZM Series)
Indoor Unit				PEAD-M125JAA(D)

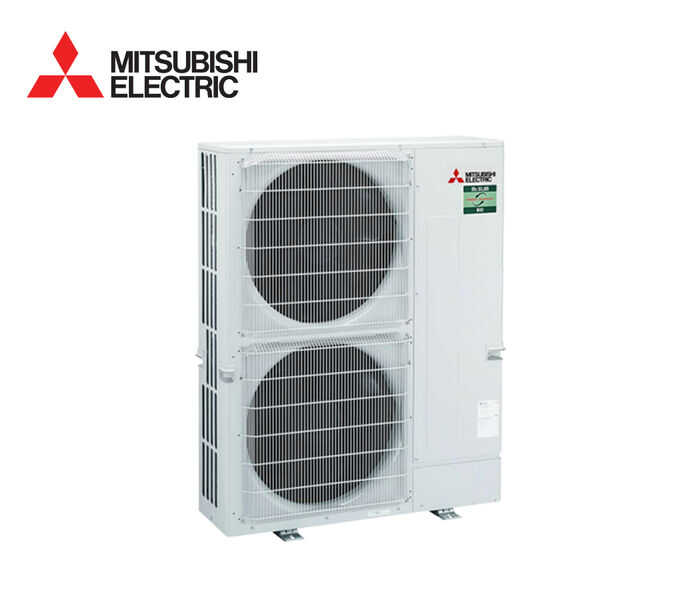

Outdoor Unit Refrigerant				PUZ-ZM 125VKA
				R32
Power Supply				V:230V, Single-phase, 50Hz Y:400V, Three-phase, 50Hz
	Capacity		(kW)	5.5-12.5-14.0
	[Min-Rated-Max]
	Total Input [Rated]		(kW)	3.66
	AEER/EER			3.32 / 3.41
Cooling	*AEER [Part-load %] 1**			–
				16.70
	Running Current [Rated]		A
	Sound In (Lo-Mid-Hi) Pressure		dB(A)	36-40-44
	Level Out (PWL)			50 (70)
	Air Volume (In) Lo-Mid-Hi		L/S	492-592-700
	Capacity		(kW)	5.10-14.0-16.0
	[Min-Rated-Max]
	Total Input [Rated]		(kW)	3.52
Heating	ACOP/COP Running Current [Rated] (mm)			3.86 / 3.97
				16.0
	Sound In (Lo-Mid-Hi)		dB(A)	36-40-44

	Level Out (PWL) Air Volume (In) Lo-Mid-Hi		dB(A)	52 (70)
				492-592-700
Max. Running Current			A	29.90
Indoor Unit	Input [Rated]		kW	(0.36) / 0.34
	Dimensions [HxWxD]		mm	250 x 1400 x 732
	Weight		kg	40
	Static Pressure		Pa	35 / 50 / 70 / 100 / 125
Outdoor Unit	Dimensions [HxWxD]		mm	1338 x 1050 x 330 (+40)
	Weight		kg	111
	Breaker Size		A	32
Ext. Piping	Diameter [Gas/Liquid]		mm	15.88 / 9.52
	Max. Length/Height		m	75 / 30
Guaranteed Cooling *2			°C	-5(-15) ~ 52
Operating Range [Outdoor] Supply Air Duct		Heating	°C	-20 ~ 21
			mm	1360 x 178
Precharge Refrigerant			kg	4 (30m)
Additional Refrigerant			per M(g)	40

FEATURES

Compact Design

With a new compact design that is suitable for smaller spaces, installation is more flexible and less obtrusive. The compact nature of the PUZ-M Series also makes transportation and handling easier. (Models PUZ-M100/125 only).

R32 refrigerant

R32 enables increased energy efficiency compared to R410A, with just one third of the global warming potential, the risk of environmental harm is greatly reduced.

Full Inverter

The Full Inverter ensures a high level of performance, including the finer control of operation frequency. As a result, improved power management is applied in all heating/cooling ranges and improved comfort is achieved while consuming less energy.

Guaranteed Operating Range

-5°C* to 46°C (Cooling), -5°C* to 21°C (Heating). Continue to operate when you need it most. *Optional air protection guide is required where ambient temperature is lower than -5°C.

Optional PAR-41MAA Wall mounted controller

This attractive full dot liquid crystal display incorporates a large backlit screen and simple menus for easy operation. You can set up to 8 temperature and airflow patterns per day for seven days. Perfect for the busy home and office or retail store.

Optional PAR-CT01MAA MA Touch Remote Controller

The full colour optional touch controller PAR-CT01MAA enables the control of both residential and commercial air conditioning applications. It has a customisable 3.5 inch colour LCD touch panel that makes it easy to use. Available in white or premium black finishes, suitable for any décor.

Demand Response Capable

Demand Response mode is activated in response to signals sent from the power distributor at times when it is necessary to reduce peak demand.
