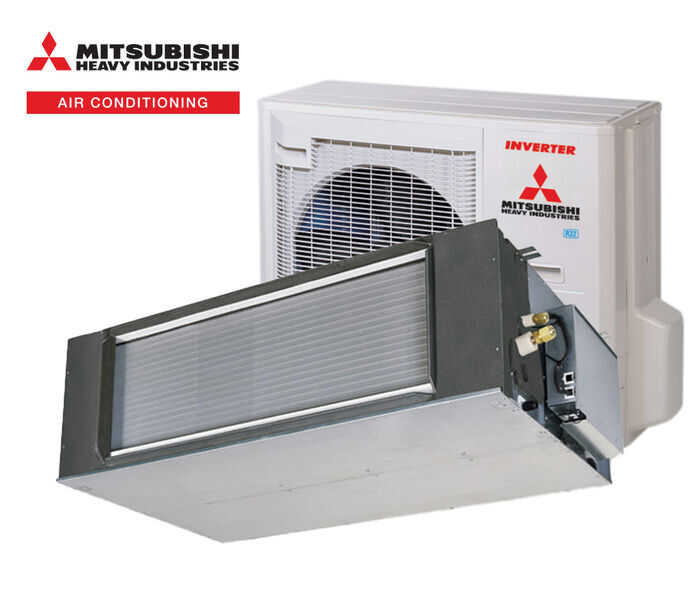

Name: Mitsubishi Heavy Industries Compact Outdoor Series SDR 12.5kW Ducted Air Conditioner System - Heat Cool Shop
SKU: FDUA125VNPWVH
Price: 3622.00 AUD
Availability: InStock

SPECIFICATIONS

CAPACITY				12.1 KW
Set				FDU125AVNPWVH

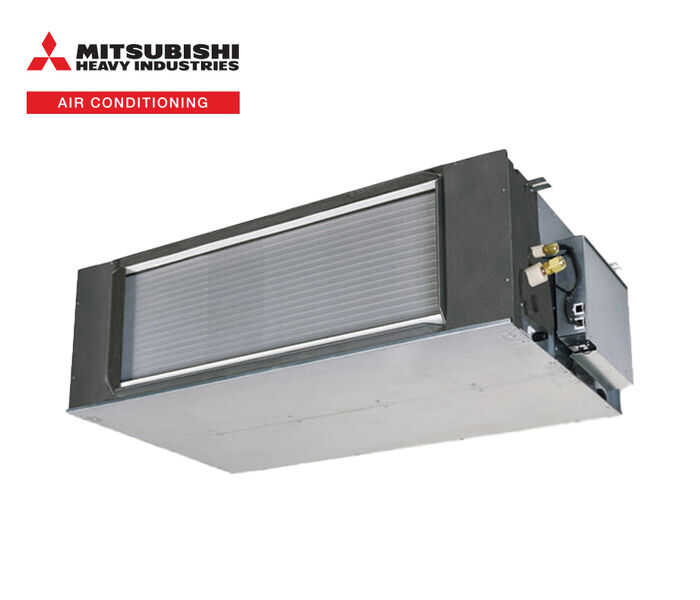

Indoor				FDU125VH

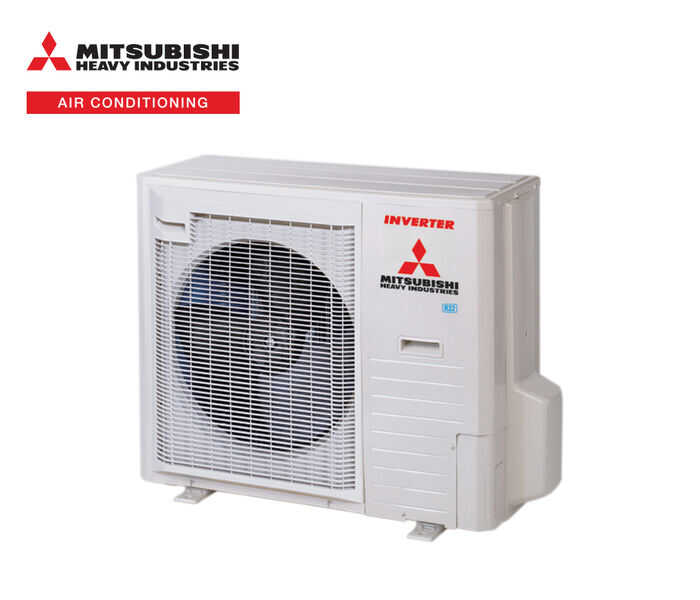

Outdoor				FDCA125VNP-W
Power Source (Outdoor Unit)				1 Phase 240V 50Hz
*Operation Data	Nominal Capacity Range	Cooling T1	kW	12.1 (5.0-12.1)
		Heating H1		12.1 (4.0-13.3)
		Heating H2		7.90
	Power Consumption	Cooling T1		3.85
		Heating H1		3.28
	Max Power Consumption			4.75
	Running Current	Cooling T1	A	16.2
		Heating H1		13.8
	Inrush Current, Maximum Current			5, 20
	EER	Cooling T1		3.14
	COP	Heating H1		3.69
	Sound Power Level (JS C9612)	Outdoor	dB(A)	73
	Sound Pressure Level (JS C9612)	Indoor		P-Hi:45 Hi:40 Me:34 Lo:29
		Outdoor		57
External Dimensions (HXWXD)		Indoor	mm	280×1370×740
		Outdoor		845x970x370
Net Weight		Indoor	Kg	54
		Outdoor		73
Supply Air Connection			mm	170×1200
Return Air Connection				235×1280
External Static Pressure (Max)			Pa	200
Airflow		Indoor (Cooling)	l/s	P-Hi:650 Hi:533 Me:433 Lo:333
		Indoor (Heating)
Refrigerant (Type, Amount, Pre-charge Length)		Quantity	kg	(R32) 2.25
		Pre Charged To Pipe Length	m	15
Installation Data	Refrigerant Piping	Liquid Line	mm	Ø9.52
		Gas Line		Ø15.88
	Connection Method			Flare connection
	Maximum Pipe Length (One Way)		m	30
	Max vertical height diff. between O.U. and I.U.			20 (O.U. above I.U.) / 20 (O.U. below I.U)
Controller				RC-E5, RC-EXZ3A, RCH-E3 or RCN-KIT4-E2
Motion Sensor (Optional)				LB-KIT2
Demand response (AS4755)				Yes
Outdoor air temperature (upper, lower limits)		Cooling		-15 to 46
		Heating		-15 to 20

FEATURES

ENERGY SAVING

HOME LEAVE OPERATION

Maintains a moderate indoor temperature, avoiding extremely hot or cool temperatures. Suitable for when rooms are unoccupied for long periods of time.

SET TEMPERATURE AUTO RETURN

Program a preferred set temperature that the unit will return to each time it is switched on. Requires RC-EXZ3A wired controller.

ECONOMY MODE

Unit operates at slightly reduced capacity to reduce power consumption while maintaining a comfortable room temperature.

COMFORT & CONVENIENCE

AUTOMATIC OPERATION

Automatically selects the required heating or cooling function based on the current room conditions and set temperature.

DRY OPERATION

Reduces humidity by removing moisture from the air without affecting indoor temperature.

FUNCTION SWITCH

Set two functions to operate automatically. Requires RC-EXZ3A wired controller and no other central controller to be connected.

PEAK-CUT TIMER

Set the capacity limit during peak billing times, minimising energy consumption and reducing running costs. Requires RC-EXZ3A wired controller.

HI POWER OPERATION

Provides 15mins of boosted power to quickly heat or cool your home before returning to normal operation. Perfect for when you first turn on it the unit.

SILENT OPERATION

Set periods of time where the unit will operate with reduced noise levels, perfect for night time and an uninterrupted sleep.

WEEKLY TIMER

Set your unit to turn on and off at specific times for each day of the week to suit your needs.

SLEEP TIMER

Set a pre-determined amount of time between 30 and 240 mins that your unit will operate for before switching off.

ON/OFF TIMER

Set your unit to turn on and off once, at specific times, within a 24 hour period.

AIR FLOW

FILTER SIGN

Alerts you to when the filter needs to be cleaned.

OUTSIDE AIR INTAKE

Allocated outside air inlet connection available on indoor unit to provide fresh air into the room, avoiding the constant recycling of internal air. Requires separate outside air duct to be connected to indoor unit.

AUTOMATIC FAN SPEED

The unit’s on-board microcomputer continuously monitors the room’s air temperature and adjusts the fan speed accordingly.

MAINTENANCE

BUILT-IN DRAIN PUMP

The built-in drain pump allows greater flexibility with installation, offering a perfect solution for applications with limited space.

IMPROVED SERVICEABILITY

The fan unit (comprised of impeller and motor) is easily accessible from either the side or bottom of the unit and can be slid out for easy maintenance.

SELF-DIAGNOSTICS

In the unlikely event of a fault the internal microcomputer automatically runs a diagnostic of the system. This enables a service agent to quickly isolate and repair any issues.
