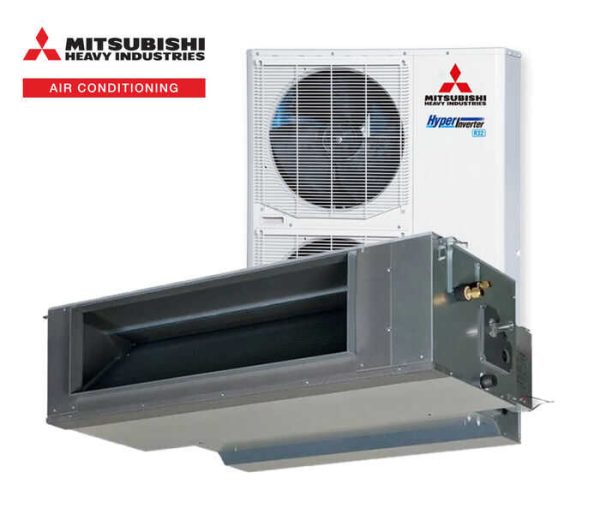

Mitsubishi Heavy Industries High Static SDR 16.0kW Ducted System

$6,870.00

Mitsubishi Heavy Industries FDUA160AVSAWVH

16.0kW High Static Ducted System | Three Phase

Includes Split table Indoor FDUA160VH | Outdoor  FDCA160VSA-W

16.0 kW Cooling | 18.0 kW Heating

3 Star Energy Rating

Add to wishlist
SKU: FDUA160AVSAWVH Categories: ,

SPECIFICATIONS

CAPACITY 16.0KW
Set FDUA160AVSAWVH
Indoor FDUA160VH
Outdoor FDCA160VSA-W
Power Source (Outdoor Unit) 3 Phase 380-415V 50Hz


















*Operation Data



Nominal Capacity Range

 Cooling T1





kW

 16.0 (6.9-20.0)
Heating H1 18.0 (5.5-22.4)
Heating H2 16.1


Power Consumption

 Cooling T1 4.68
Heating H1 4.6
Max Power Consumption 11.20


Running Current

 Cooling T1

A

 7.5
Heating H1 7.5
Inrush Current, Maximum Current 5, 24
EER Cooling T1 3.42
COP Heating H1 3.91
Sound Power Level (JS C9612) Outdoor



dB(A)

 73
Sound Pressure Level (JS C9612) Indoor P-Hi:48 Hi:47 Me:43 Lo:41
Outdoor 58


External Dimensions (HXWXD)

 Indoor

mm

 398x1450x930
Outdoor 1505x970x370


Net Weight

 Indoor

Kg

 66
Outdoor 145
Supply Air Connection

mm

 298×1064
Return Air Connection 2 X Ø400
External Static Pressure (Max) Pa 150
Airflow Indoor (Cooling) l/s P-Hi:1000 Hi:866 Me:733 Lo:683
Indoor (Heating) P-Hi:1000 Hi:866 Me:733 Lo:600


Refrigerant (Type, Amount, Pre-charge Length)

 Quantity kg (R32) 5.1
Pre Charged To Pipe

Length

 m 30






Installation Data



Refrigerant Piping

 Liquid Line

mm

 Ø12.7
Gas Line Ø22.22 , Ø25.4 or Ø28.58
Connection Method Liquid: Flare / Gas: Brazing
Maximum Pipe Length (One Way)

m

 70***
Max vertical height diff. between O.U. and I.U. 30 ( O.U. above I.U. ) / 15 ( O.U. below I.U. )
Controller RC-E5, RC-EXZ3A, RCH-E3 or RCN-KIT4-E2
Safety Pan (Optional) N/A
Motion Sensor (Optional) LB-KIT2
Demand response (AS4755) Yes
Outdoor air temperature (upper, lower limits) Cooling

oC

 -15 to 50
Heating -20 to 20

FEATURES

ENERGY SAVING

HOME LEAVE OPERATION

Maintains a moderate indoor temperature, avoiding extremely hot or cool temperatures. Suitable for when rooms are unoccupied for long periods of time.

SET TEMPERATURE AUTO RETURN

Program a preferred set temperature that the unit will return to each time it is switched on. Requires RC-EXZ3A wired controller.

ECONOMY MODE

Unit operates at slightly reduced capacity to reduce power consumption while maintaining a comfortable room temperature.



COMFORT & CONVENIENCE

AUTOMATIC OPERATION

Automatically selects the required heating or cooling function based on the current room conditions and set temperature.

DRY OPERATION

Reduces humidity by removing moisture from the air without affecting indoor temperature.

FUNCTION SWITCH

Set two functions to operate automatically. Requires RC-EXZ3A wired controller and no other central controller to be connected.

PEAK-CUT TIMER

Set the capacity limit during peak billing times, minimising energy consumption and reducing running costs. Requires RC-EXZ3A wired controller.

HI POWER OPERATION

Provides 15mins of boosted power to quickly heat or cool your home before returning to normal operation. Perfect for when you first turn on it the unit.

SILENT OPERATION

Set periods of time where the unit will operate with reduced noise levels, perfect for night time and an uninterrupted sleep.

WEEKLY TIMER

Set your unit to turn on and off at specific times for each day of the week to suit your needs.

SLEEP TIMER

Set a pre-determined amount of time between 30 and 240 mins that your unit will operate for before switching off.

ON/OFF TIMER

Set your unit to turn on and off once, at specific times, within a 24 hour period.



AIR FLOW

FILTER SIGN

Alerts you to when the filter needs to be cleaned.

OUTSIDE AIR INTAKE

Allocated outside air inlet connection available on indoor unit to provide fresh air into the room, avoiding the constant recycling of internal air. Requires separate outside air duct to be connected to indoor unit.

AUTOMATIC FAN SPEED

The unit’s on-board microcomputer continuously monitors the room’s air temperature and adjusts the fan speed accordingly.



MAINTENANCE

BUILT-IN DRAIN PUMP

The built-in drain pump allows greater flexibility with installation, offering a perfect solution for applications with limited space.

IMPROVED SERVICEABILITY

The fan unit (comprised of impeller and motor) is easily accessible from either the side or bottom of the unit and can be slid out for easy maintenance.

SELF-DIAGNOSTICS

In the unlikely event of a fault the internal microcomputer automatically runs a diagnostic of the system. This enables a service agent to quickly isolate and repair any issues.



DESCRIPTION

INCLUDED

  • FDCA160VSA-W – MHI DUCTED ODU 16KW R32 3PH
  • FDUA160VH – MHI H/STAT DUC IDU R/C 16KW NC R32

BROCHURE

Mitsubishi-Heavy-Industries-Ducted-System-Brochure
