Panasonic CS 2.5kW 4-Way Mini Cassette System

$2,109.00

Panasonic S-25PY3E

2.5kW 4-Way Mini Cassette | NanoeX

Includes- Indoor- S-25PY3E | Outdoor- U-25PZ3R5

Fascia : CZ-KPY4 | Controller: CZ-RTC5B

2.5 kW Cooling | 3.2 kW Heating

4.46 Star Energy Rating

SPECIFICATIONS

Capacity			2.5KW

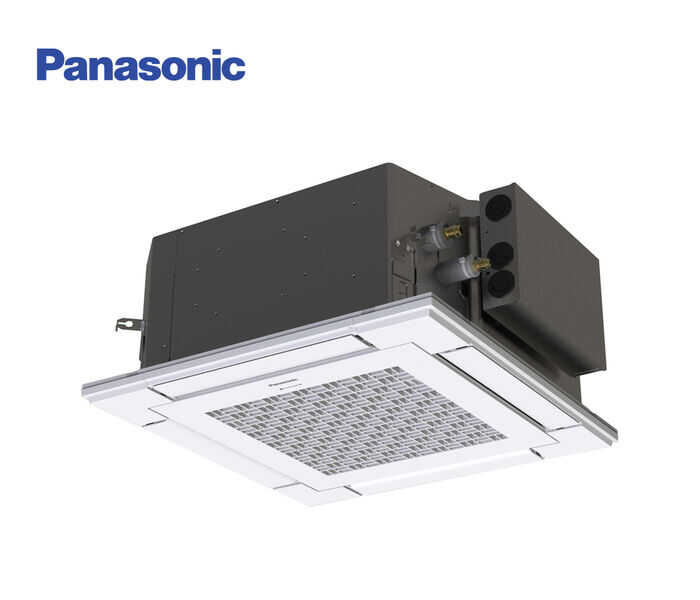

Model Name	Indoor Unit		S-25PY3E

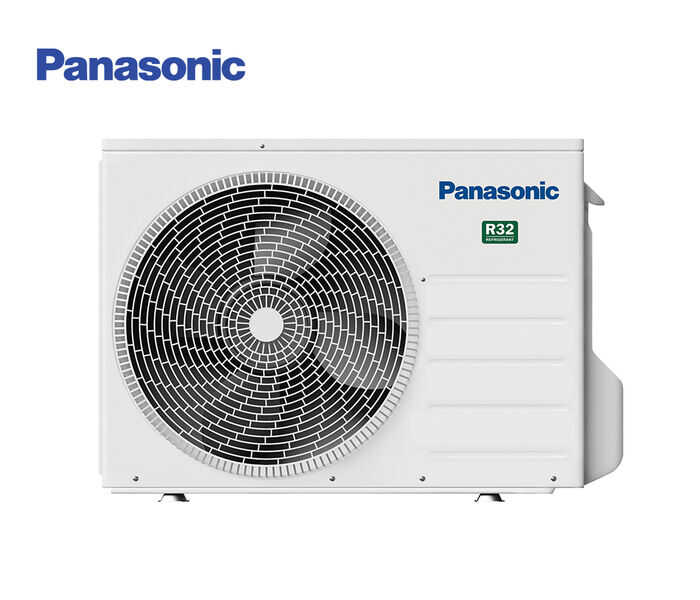

	Outdoor Unit		U-25PZ3R5
	Panel		CZ-KPY4

Cooling capacity		kW	2.5 (1 .3-3.9)
Heating capacity		kW	3.2 (1 .3-4.6)
Cooling capacity		BTU/h	8,500 (4,400-13,300)
Heating capacity		BTU/h	10,900 (4,400-15,700)
EER : COP		W/W	4.46 : 4.44
Power input (min – max)	Cooling : Heating	kW	0.56(0.27-1 .10):0.72(0.25-1.35)
Indoor Unit
Power source		Phase/Hz	1 Phase/ 50Hz
Power source		V	230v 240v
Current	Cooling, Heating	A	2.55, 3.25 / 2.45, 3.10
Dimensions	H x W x D	mm	243 x 575 x 575
Net weight		kg	15
Air volume	Cooling : Heating	L/S	141 : 141
Sound pressure level (H/M/L)	Cooling : Heating	dB(A)	31/28/25 : 31/28/25
Sound power level (H/M/L)	Cooling : Heating	dB(A)	46/43/40 : 46/43/40
Outdoor Unit
Power source		Phase/Hz	1 Phase / 50Hz
Power source		V	230v / 240v
Dimensions	H x W x D	mm	619 x 824 x 299
Net weight		kg	31
Piping connections	Liquid / Gas	mm	Ø6.35 / Ø12.7
Pipe length	min. – max.	m	3 — 20
Elevation difference		m	15
Operation ranges	Cooling : Heating	oC	-10 — +46 : -15 — +24

FEATURES

Featuring uniform cooling, easy installation, and with a sleek exterior, this unit is the perfect match for all commercial applications.

Technical focus

Compact design
Low sound levels
DC fan motor for increased efficiency
Powerful drain pump gives 850 mm lift
Lightweight design
Fresh air knockout
Branch duct connection
Optional air-intake plenum CZ-FDU3

360° Wide & Comfortable Airflow

Our design features wide-angle outlets and flaps that were designed through expert mechanics and prototype tests. Air from the centre is sent farther and the air blown out of the larger, side flaps spreads throughout the room. The air comes from all for sides of the unit and expands gently in a circle centred on the indoor unit.

Wide Flap

Adding a sub flap and widening the main flap have reduced turbulence and increased airflow. Also, setting the jetting port at a wider angle allows the airflow to reach the corners of the room more quickly.

3D Turbo Fan

Using a twisted 3D blade made the unit slimmer and more compact, while also increasing the airflow. A 5-Speed mode allows the airflow to be adjusted in 5 steps to suit the situation.

High-Ceiling Installation (Up to 5 m for 10.0kW+ models)

The units can be installed in rooms with high ceilings, where they provide ample floor-level heating in
the winter. (See ceiling height guidelines below.
