Name: Panasonic HWS 3.5kW Reverse Cycle Split System - Heat Cool Shop
SKU: CS/CU-RZ35XKR
Price: 1134.00 AUD
Availability: InStock

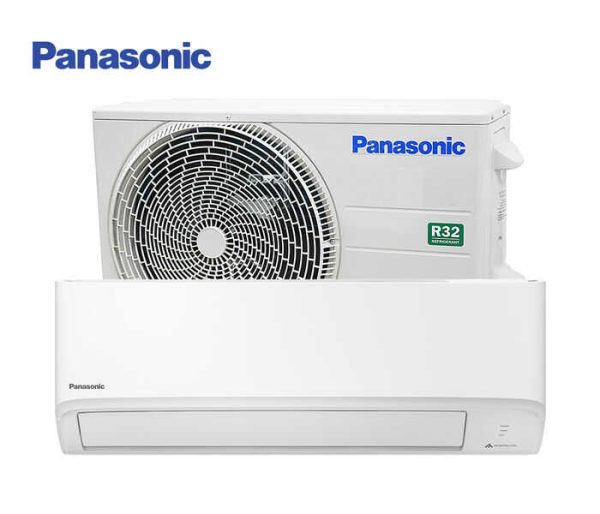

Panasonic HWS 3.5kW Reverse Cycle Split System

$1,134.00

Panasonic CS/CU-RZ35XKR

3.5kW Reverse Cycle Split System Air Conditioner R32

Includes – Indoor- CS-RZ35XKRW | Outdoor- CU-RZ35XKR

3.5 kW Cooling | 4.3 kW Heating

5 Star Energy Rating

SPECIFICATIONS

MODEL		(240V / 1 Phase / 50Hz)				CS-RZ35XKRW [CU-RZ35XKR]
Cooling / Heating		(min-max)			kW	3.50 [1.00-4.20]
						4.00 [0.90-5.70]
Capacity		(min-max)			Btu/h	11,900 [3,410-14,300]
						13,600 [3,070-19,400]
Air Flow		Indoor			L/s	193/202
Dehumid					L/h	2.0
		Running Current			A	3.50/3.80
Electrical Data		Max Current			A	7.2
		Power Input (min-max)			kW	0.80 (0.22-1.29)
						0.86 (0.19-1.65)
AEER / EER			W/W			4.33/4.38
ACOP / COP			W/W			4.61/4.65
		Hot Climate			Cooling	4.5
					Heating	3.5
Star Rating		Average Climate			Cooling	4.0
					Heating	3.0
		Cold Climate			Cooling	4.5
					Heating	2.5
TCSPF & HSPF Residential/ Commercial			Hot Climate		TCSPF HSPF	6.49/7.36 5.41/5.41
			Average Climate		TCSPF HSPF	5.95/8.05 4.89/5.09
			Cold Climate		TCSPF HSPF	6.18/9.40 4.25/4.55
Noise Level				Indoor (H / L / Q-Lo)		44/26/19
	Sound Pressure					44/29/22
				Outdoor (H / Q-Lo)
	Level*2 dB(A)					49/44 50/45
				Indoor (H / L / Q-Lo)		60/42/35
	Sound Power					60/45/38
	Level dB(A)
				Outdoor (H / Q-Lo)		64/59
						65/60
Net Weight		Indoor (Outdoor)			kg	8(30)
Dimensions		Indoor (H x W x D)			mm	290 x 779 x 209
		Outdoor (H x W x D)			mm	542 x 780 x 289
Refrigerator Pipe Liquid Side mm/(inch)						ø 6.35 (1/4)
Diameter Gas Side mm/(inch)						ø 9.52 (3/8)
Pipe Extension Length Min ~ Max (m)						3~20
Maximum Elevation Length m						15
Pipe Length For Additional Gas m						7.5
Additional Gas Amount g/m						10
Operating Range (Outdoor) Cooling Degree °C Heating						-10 ~ +46 -15 ~ +24

FEATURES

POWERFUL MODE

Pressing the Powerful button cools or heats the room quickly. It provides fast comfort, with full power and a strong airflow. This is perfect for use immediately after coming home, or when unexpected guests arrive.

SLEEP MODE

Delays off timer with temperature control for better sleep.

QUIET MODE

Enjoy the comfort of running your air conditioner at night for a relaxing sleep.

PERSONAL AIRFLOW CREATION

Vertical and horizontal airflow patterns can be combined as desired to achieve optimum comfort, with operation possible by remote even from a distance.

FAN MODE

Allows you to run the fan without any cooling or heating, thus giving just ventilation.

AUTO CHANGEOVER (INVERTER)

In Auto Mode, the unit will select if heating or cooling is required.

SOFT DRY OPERATION MODE

Starts with cooling to dehumidify, then provides continuous breeze at a low frequency to keep a room dry without much change to the temperature

HOT START CONTROL

On the start of the heating cycle and after the defrost cycle, the indoor fan will start up once the indoor heat exchanger is warm.

AIRFLOW DIRECTION CONTROL (UP & DOWN)

Vertical airflow patterns can be controlled with operation by remote, even from a distance. * Applicable to CS-RZ25XKRW, CS-RZ35XKRW, CS-RZ42XKRW & CS-RZ50XKRW
