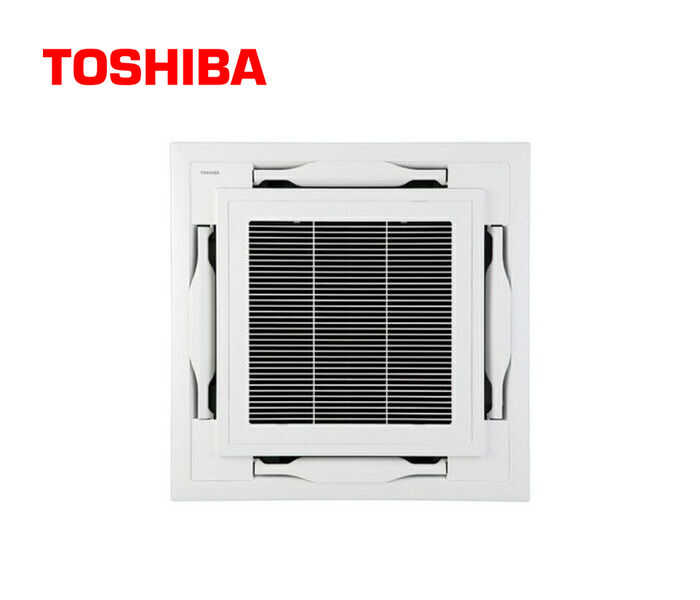

Toshiba CS 14.0kW Digital Inverter 4 Way Cassette System

$4,683.00

Toshiba RAV-GM1601UTPWL1

14.0kW Digital Inverter 4 Way Cassette System 1 Phase

Toshiba Indoor RAV-GM1601UTP-A | Outdoor RAV-GM1601ATP-A

Fascia – RBC-U32PGP-E   | Backlit Wired Controller with Weekly Timer – RBC-AXU31U-E

14 kW Cooling |16 kW Heating

3.23 Energy Star Ratings

SKU: RAV-GM1601UTPWL1 Categories: ,

SPECIFICATIONS

INDOOR UNIT RAV-GM1601UTP-A
OUTDOOR UNIT RAV-GM1601ATP-A
Cooling Capacity Range kW 14.0 [3.0 – 16.0]
Heating Capacity Range kW 16.0 [3.0 – 18.0]
EER 3.23
COP 3.65
Maximum Operating Current A 29
Dimensions – Indoor [H x W x D] mm 319 x 840 x 840
Dimensions – Outdoor [H x W x D] 1340 x 900 x 320
Dimensions – Panel [H x W x D] 30 x 950 x 950
Weight – Indoor / Outdoor / Panel kg 24 / 97 / 4.2
Airflow [H / M / L] l/s 638 / 511 1 416
Sound Pressure Level Indoor / Outdoor dB(A) 48 / 57
Operating Range Cooling oC db -15 to 46
Operating Range Heating -15 to 24
Pipe Sizes (Liquid / Gas) mm 9.52 / 15.88
Maximum Pipe Length / Lift m 50 / 30
Maximum Pre-charged Length 30
Power Supply Ph / v / Hz 1ph / 220-240V / 50Hz

FEATURES

SMART AIRFLOW

Individual louver control enables airflow to be chosen according to user preferences. The angles of each louver can be set individually in 3 different choices of swing patterns; Standard swing, Dual swing and Cyclic swing.

BUILT-IN CONDENSATE DRAIN PUMP

Equipped with a built-in drain pump with a pressure lift of 850mm, increasing flexibility and installation speed.

STANDARD TO HIGH CEILING APPLICATIONS

Toshiba 4-Way Cassettes are designed for standard to high ceiling applications.

POWER SAVING

Set limits that restrict power consumption and reduce power bills.

Power consumption is given first priority, and limits maximum power consumption of the unit.

SELF CLEAN MODE

The unit dries internally by running on FAN operation once normal cycle has ceased, allowing the unit to be kept clean and reducing the built up of allergens, dust and odours.



DESCRIPTION

INCLUDED

  • RBC-U32PGP-E – TOSHIBA CASSETTE FASCIA R32
  • RBC-AXU31U-E – TOSHIBA WIRELESS CONTROLLER DUC/CAS
  • RAV-GM1601UTP-A – TOSHIBA CASSETTE IND 14KW R32
  • RAV-GM1601ATP-A – TOSHIBA DUC/CAS ODU 14KW R32 1P

BROCHURE

Toshiba-In-Ceiling-Cassette-Air-Conditioners-brochure-airconditioning-online-australia
