Toshiba UCS 14.0kw Digital Inverter Ceiling AC System

$4,694.00

Toshiba RAV-GM1601CTP-A
14.0kW Digital Inverter Under Ceiling AC System 1 Phase

Includes Indoor RAV-GM1601CTP-A | Outdoor RAV-GM1601ATP-A
Wired Controller with Weekly Timer: RBC-AMSU51-ES

14.0 kW Cooling | 16.0 kW Heating

Automatic Air Volume Control | R32

SKU: RAV-GM1601CTP-A / RAV-GM1601ATP-A / RBC-AMSU51-ES Categories: ,

SPECIFICATIONS

INDOOR UNIT RAV-GM1601CTP-A

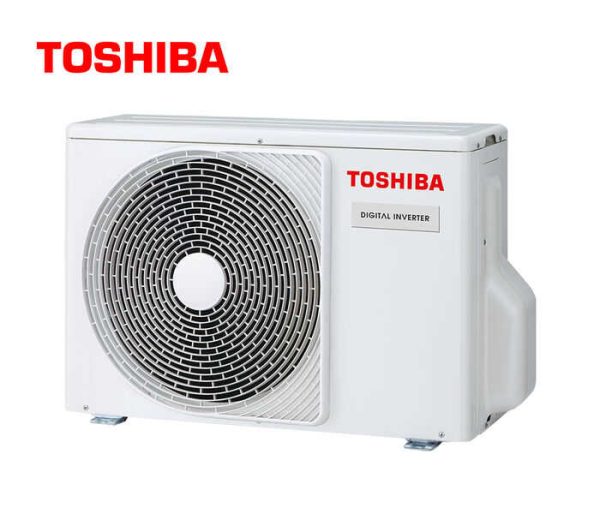

OUTDOOR UNIT RAV-GM1601ATP-A
Cooling Capacity Range kW 14.0 [3.0 – 16.0]
Heating Capacity Range kW 16.0 [3.0 – 18.0]
EER 3.1
COP 3.65
Maximum Operating Current A 29
Dimensions – Indoor [H x W x D] mm 235 x 1586 x 690
Dimensions – Outdoor [H x W x D] 1340 x 900 x 320
Weight – Indoor / Outdoor kg 37 / 97
Airflow [H / M / L] l/s 566 / 458 / 350
Sound Pressure Level Indoor / Outdoor dB(A) 46 / 57
Operating Range Cooling oC db -15 to 46
Operating Range Heating -15 to 24
Pipe Sizes (Liquid / Gas) mm 9.52 / 15.88
Maximum Pipe Length / Lift m 50 / 30
Maximum Pre-charged Length 30
Power Supply Ph / V / Hz 1ph / 220-240V / 50Hz

FEATURES

SELF CLEANING FUNCTION

Toshiba’s self-cleaning function is designed to reduce the humidity that causes mold to form inside an air- conditioning units. 20 minutes of fan operation after shut down dries the moist air and helps reduce mold formation on heat exchanger coils.

SMOOTH CURVES

Toshiba’s new Under Ceiling units have adopted a more rounded and sleek chassis design to compliment any decor.

OPTIONAL DRAIN PUMP

Reduce mold formation with the optional drain pump kit with built-in glass that aids in mold formation over time.

AIR CONTROL

The airflow angle is automatically set to the most suitable setting according to your cooling or heating needs, and an automatic swing mode enables airflow to reach all areas of the room to create a comfortable ambience.

RE-DESIGNED WIDER FLAP

The new air outlet has been re-designed allowing for high noise reduction and increased air volume circulation compared to the previous series.

COMFORTABLE AMBIENCE

With the implementation of the improved fan design, the Toshiba under ceiling unit now has increased air volume circulation and reduced noise levels compared to the previous models.

Air throw can now extend up to 4.3m, creating comfortable spaces with reduced cold & hot spots.

Toshiba RAV-GM1601CTP-A 14.0kW Digital Inverter Under Ceiling AC System 1 Phase

DESCRIPTION

INCLUDED

RAV-GM1601ATP-A – TOSHIBA DUC/CAS ODU 14KW R32 1P
RAV-GM1601CTP-A – TOSHIBA UNDER CEILING IND 14KW R32

BROCHURE

Toshiba-Digital-INVERTER-air-conditioning
