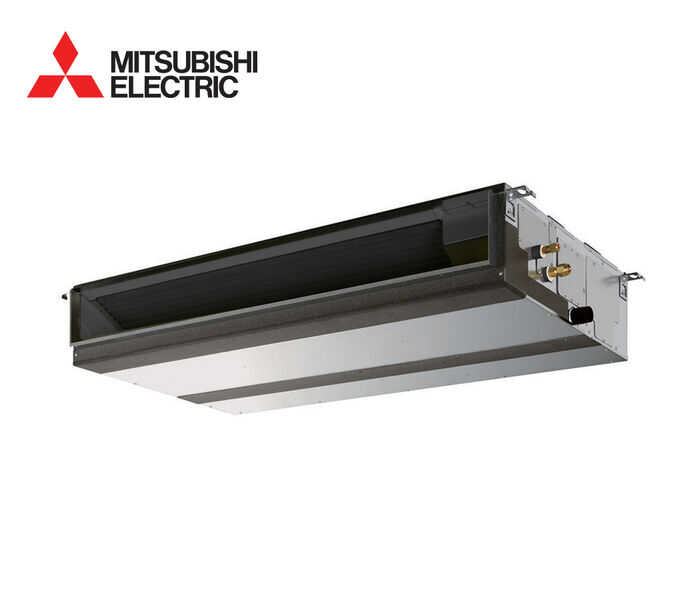

Mitsubishi Electric PEAD-M71JAAD 7.1kW Multi Ducted Indoor Unit

$1,070.00

Mitsubishi Electric PEAD-M71JAAD
7.1kW Multi Ducted Indoor Unit Only

7.1 kW Cooling | 8.0 kW Heating

Includes Backlit Controller

Add to wishlist
SKU: PEAD-M71JAAD Category:

SPECIFICATIONS

PEAD-M Series (Ceiling Concealed)
Indoor Unit PEAD-M71JAA(D)
Fan Speed Lo-Mid-Hi


Cooling

 Airflow [min-max] ℓ/s 292 – 350 – 417
Sound Pressure Level [min-max] dB 30 – 33 – 38


Heating

 Airflow [min-max]

Sound Pressure Level [min-max]

 ℓ/s

dB

 292 – 350 – 417
30 – 33 – 38
Static Pressure

Height

 Pa

mm

 35/50/70/100/125
250
Dimensions



Weight

 Width mm 1100
Depth mm 732
kg 30
Return Air Spigot Size mm 1058 x 210
Supply Air Spigot Size mm 1060 x 178
Pipe Size [Liquid/Gas] mm ø9.52/ø15.88

FEATURES

Compact Design

The height of the PEAD Series (5.0kW – 10.0kW) has been unified to 250mm making installation possible in low ceilings with minimal clearance space. It has variable airflow settings to ensure the best operation to match virtually all room layouts. The drainage pump lift is 700mm from the lower surface of the indoor units main body. The solution for low ceiling space, as low as 250mm.

Wide Selection of Fan Speeds and External Static Pressure

The PEAD Series incorporate five-stage external static pressure conversions and three fan speed selections, offering the ultimate in comfort diversity. PEAD Series are designed for human comfort and to be installed in a wide range of building types with broad static pressures requirements ranging from 35 to 125Pa.

Mitsubishi Electric PEAD-M71JAAD 7.1kW Multi Ducted Indoor Unit Only

DESCRIPTION

INCLUDED

PEAD-M71JAAD-MITSUBISHI ELEC. SLIM DUCTED IND 7.1KW

BROCHURE

Mitsubishi Electric Multi-Ducted-Indoor System-Brochure
Mitsubishi Electric Multi-Ducted-Indoor System-Installation Manual
