Mitsubishi Electric SDR 10.0kW PEAD-M-JAAS Low Profile Ducted AC System

$3,998.00

MITSUBISHI ELECTRIC PEAD-M100JAADR1.TH
10.0kW PEAD-M-JAAS Low Profile Ducted Air Conditioning System 1 Phase

10.0 kW Cooling | 11.20 kW Heating

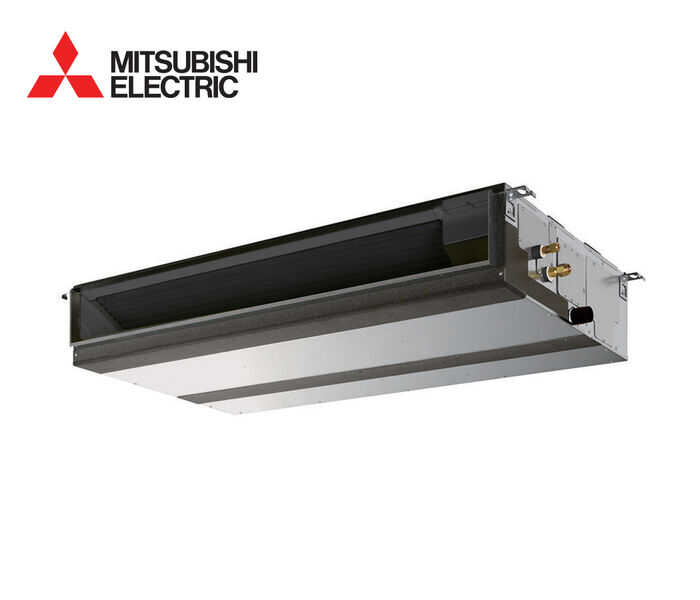

PEAD-M100JAADR1.TH : Indoor – Ducted with Drain Pump

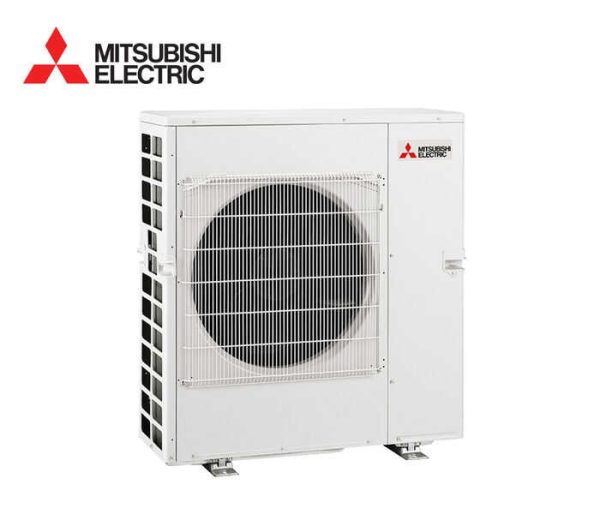

PUZ-M100VKA-A.TH : R32 Inverter Outdoor – Single Phase

Low Profile Power Inverter

3.13 Stars Energy Ratings

SPECIFICATIONS

Ceiling-Concealed (PEAD-M Series)
Indoor Unit				PEAD-M100JAA(D)
Outdoor Unit				PUZ-M100VKA
Refrigerant				R32
Power Supply				V:230V, Single-phase, 50 Hz
Cooling	Capacity [Min-Rated-Max]		(kW)	4.0-10.0-10.6
	Total Input [Rated]		(kW)	3.06
	AEER/EER			3.13 / 3.26
	*AEER [Part-load %] 1**			4.40
	Running Current [Rated]		A	14.1
	Sound Pressure Level	In (Lo-Mid-Hi)	dB(A)	33-38-42
		Out (PWL)		52 (71)
	Air Volume (In) Lo-Mid-Hi		L/S	400-483-567
Heating	Capacity [Min-Rated-Max]		(kW) (kW)	2.8-12.5-12.5
	Total Input [Rated]			3.35
	ACOP/COP			3.59 / 3.73
	*ACOP Part-load %) 1**			–
	Running Current [Rated]		(mm)	16.5
	Sound Pressure Level	In (Lo-Mid-Hi)	dB(A)	33-38-42
		Out (PWL)	dB(A)	54 (72)
	Air Volume (In) Lo-Mid-Hi			400-483-567
Max. Running Current			A	29.00
Indoor Unit	Input [Rated]		kW	0.25 / 0.23
	Dimensions [HxWxD]		mm	250 x 1400 x 732
	Weight		kg	39
	Static Pressure		Pa	35 / 50 / 70 / 100 / 125
Outdoor Unit	Dimensions [HxWxD]		mm	981 x 1050 x 330 (+40)
	Weight		kg	76
	Breaker Size		A	32
Ext. Piping	Diameter [Gas/Liquid]		mm	15.88 / 9.52
	Max. Length/Height		m	55 / 30
Guaranteed Operating Range [Outdoor]		*Cooling 2**	°C	-5(-15) ~ 46
		Heating	°C	-15 ~ 21
Supply Air Duct			mm	1360 x 178
Precharge Refrigerant R32			kg	3.1 (30m)
Additional Refrigerant			per M(g)	200

FEATURES

Compact Design

With a new compact design that is suitable for smaller spaces, installation is more flexible and less obtrusive. The compact nature of the PUZ-M Series also makes transportation and handling easier. (Models PUZ-M100/125 only).

R32 refrigerant

R32 enables increased energy efficiency compared to R410A, with just one third of the global warming potential, the risk of environmental harm is greatly reduced.

Full Inverter

The Full Inverter ensures a high level of performance, including the finer control of operation frequency. As a result, improved power management is applied in all heating/cooling ranges and improved comfort is achieved while consuming less energy.

Guaranteed Operating Range

-5°C* to 46°C (Cooling), -5°C* to 21°C (Heating). Continue to operate when you need it most. *Optional air protection guide is required where ambient temperature is lower than -5°C.

Optional PAR-41MAA Wall mounted controller

This attractive full dot liquid crystal display incorporates a large backlit screen and simple menus for easy operation. You can set up to 8 temperature and airflow patterns per day for seven days. Perfect for the busy home and office or retail store.

Optional PAR-CT01MAA MA Touch Remote Controller

The full colour optional touch controller PAR-CT01MAA enables the control of both residential and commercial air conditioning applications. It has a customisable 3.5 inch colour LCD touch panel that makes it easy to use. Available in white or premium black finishes, suitable for any décor.

Demand Response Capable

Demand Response mode is activated in response to signals sent from the power distributor at times when it is necessary to reduce peak demand.
