FEATURES
Large capacity single-phase power supply

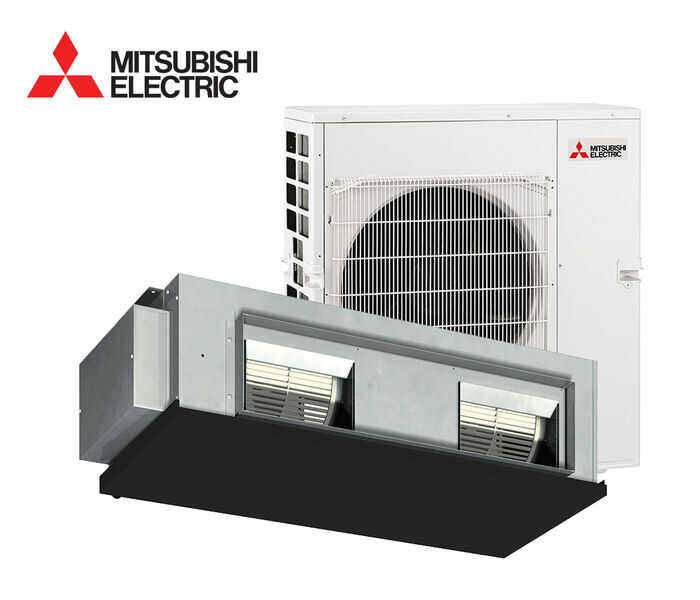

Mitsubishi Electric introduces the NEW Mr Slim large capacity ducted units in R32 refrigerant. The 18 kW indoor model can be connected to a single or three-phase Mr Slim outdoor unit, making the 18 kW model one of the largest ducted units available in the market with a single-phase power supply.
New side discharge outdoor unit

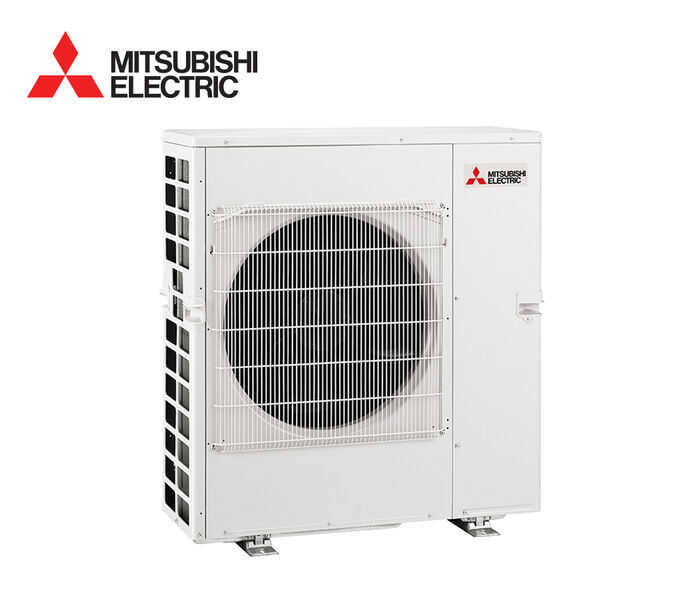

The Mr Slim outdoor unit PUZ-ZM250YKA-A is now a side discharge model with twin fans, compared to the previous PUHZ-RP250YKM-A top discharge. The new model is only 1,338 mm high and 139 kg, making it possible to install the outdoor unit in discrete locations and easier to transport to sites.
Long pipe lengths
The Mr Slim outdoor units feature power inverter technology with superior turndown capacity and long piping lengths up to 100m for PUZ-ZM200/250YKA-A. For installations with a pipe length of 50m or less, it is possible to use 7/8” soft-drawn copper pipe for Mr Slim outdoor units PUZ-ZM200/250YKA-A. These two models do not require additional refrigerant charge when the installed pipe length is 50m or less and helps reduce installation cost and time.
Low input with new fan design

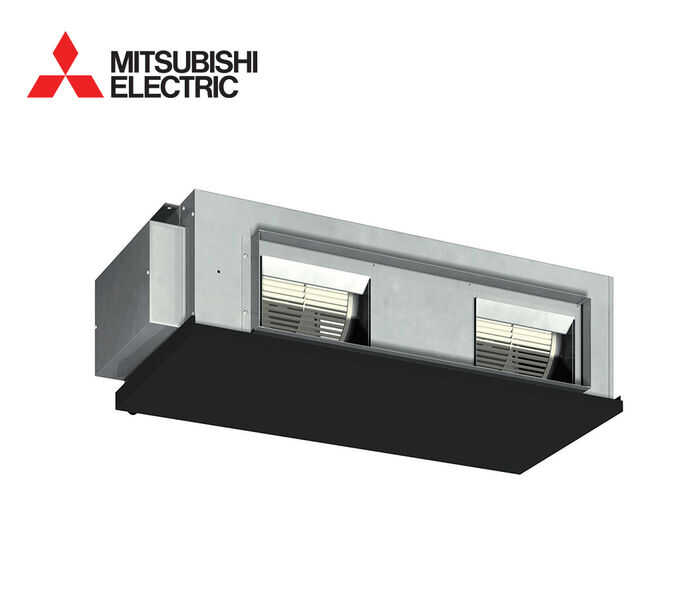

The PEA-M LAA Series fan motor has been upgraded with a maximum external static pressure of up to 250 Pa and has four fan speed settings. We can achieve this with a newly designed patented Turbo In Sirocco fan that delivers high efficiency with lower power input.
Flexible ducting design
With the flexibility of ducted design and 150Pa external static high-pressure are incorporated. The increased variation in airflow options ensures operation that best matches virtually all room layouts.
Wi-Fi Control
Unlock the door to smarter heating and cooling systems, for total home comfort. This innovative technology connects your Mitsubishi Electric air conditioner to your smartphone, tablet or online account, giving you the freedom to fully control each unit on-the-go via an internet connection from anywhere in the world.
*1 Optional Wi-Fi adapter required per unit. Requires an internet connection and the Wi-Fi Control App downloaded on your smartphone or tablet with the latest operating system available.
*2 To use Amazon Alexa to control your air conditioner you will need an Amazon Alexa Echo device.
*3 To use Google Assistant to control your air conditioner you will need a Google Home Smart speaker.
Optional zone controller
Upgrading to an optional zone controller gives the option of up to 4 or 8 zones, to provide control to different rooms of the home. Zone Controller is compatible with the optional Wi-Fi Control interface and app.
High external static pressure
The PEA-M-LAA ducted air con series incorporates five-stage external static pressure conversions and four fan speed selections, offering the ultimate in comfort solutions. These units are designed for human comfort and to be installed in a wide range of building types with broad static pressure requirements ranging from 75 to 250Pa. *Application dependent on site conditions.
R32 refrigerant
R32 enables increased energy efficiency compared to R410A, with just one third of the global warming potential, the risk of environmental harm is greatly reduced.
Improved Ventilation & Energy Efficiency with Optional Lossnay Heat Recovery Ventilation
Mitsubishi Electric ducted air conditioning system can be integrated with optional Lossnay heat recovery ventilation to improve indoor air quality and energy efficiency. The Lossnay system provides tempered fresh air into your home by recovering the heat from the stale air from inside. Both systems can be controlled from one controller.
Reverse cycle heating
Activate the heating mode to provide a warm and cosy space. Reverse cycle air conditioning can be a relatively efficient and economical way of heating and cooling compared to gas and electric space heaters. Mitsubishi Electric air conditioners are a quiet and clean source of heating for your home.
Full Inverter
The Full Inverter ensures a high level of performance, including the finer control of operation frequency. As a result, improved power management is applied in all heating/cooling ranges and improved comfort is achieved while consuming less energy.
Other Features
R32 refrigerant
Year round comfort
Optional Wi-Fi Control
