Name: Panasonic CS 6kW 4-Way Mini Cassette System - Heat Cool Shop
SKU: S-60PY3E
Price: 3219.00 AUD
Availability: InStock

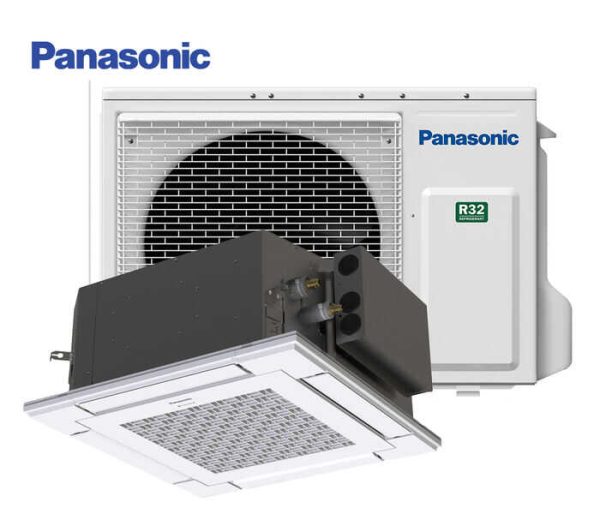

Panasonic CS 6kW 4-Way Mini Cassette System

$3,219.00

Panasonic S-60PY3E

6.0kW 4-Way Mini Cassette | NanoeX

Fascia : CZ-KPY4 | Controller: CZ-RTC5B

6.0 kW Cooling | 6.0 kW Heating

3.39 Star Energy Rating

SPECIFICATIONS

Capacity			6.0KW
model Name	Indoor Unit		S-60PY3E
	Outdoor Unit		U-60PZ3R5
	Panel		CZ-KPY4
	Receiver		CZ-RWRY3
Cooling capacity : Heating capacity		kW	6.0 (2.0-7.0) 6.0 (1.8-7.0)
Cooling capacity : Heating capacity		BTU/h	20,500 (6,800-23,900) 20,500 (6,100-23,900)
EER : COP		W/W	3.39 : 3.61
Power input (min – max)	Cooling : Heating	kW	1.77(0.34-2.53):1.66(0.39-2.45)
Indoor Unit
		Phase/Hz	1 Phase/ 50Hz
V			230V \| 240V
Current	Cooling, Heating A		8.10, 7.35 \| 7.75, 7.05
Dimensions	H × W × D	mm	243 x 575 x 575
Net weight		kg	15
Air volume	Cooling : Heating	L/s	233 : 233
Sound pressure level (H/M/L)	Cooling : Heating	dB(A)	43/37/31 : 43/37/31
Sound power level (H/M/L)	Cooling : Heating	dB(A)	58/52/46 : 58/52/46
Outdoor Unit
Power source		Phase/Hz	1 Phase / 50Hz
Power source		V	230V \| 240V
Dimensions	H × W × D	mm	695 x 875 x 320
Net weight		kg	43
Piping connections	Liquid / Gas	mm	Ø6.35 / Ø12.7
Pipe length	min. – max.	m	3 – 40
Elevation difference		m	30
Operation ranges	Cooling : Heating	˚C	-10 – +46 : -15 – +24

FEATURES

Featuring uniform cooling, easy installation, and with a sleek exterior, this unit is the perfect match for all commercial applications.

Technical focus

Compact design
Low sound levels
DC fan motor for increased efficiency
Powerful drain pump gives 850 mm lift
Lightweight design
Fresh air knockout
Branch duct connection
Optional air-intake plenum CZ-FDU3

360° Wide & Comfortable Airflow

Our design features wide-angle outlets and flaps that were designed through expert mechanics and prototype tests. Air from the centre is sent farther and the air blown out of the larger, side flaps spreads throughout the room. The air comes from all for sides of the unit and expands gently in a circle centred on the indoor unit.

Wide Flap

Adding a sub flap and widening the main flap have reduced turbulence and increased airflow. Also, setting the jetting port at a wider angle allows the airflow to reach the corners of the room more quickly.

3D Turbo Fan

Using a twisted 3D blade made the unit slimmer and more compact, while also increasing the airflow. A 5-Speed mode allows the airflow to be adjusted in 5 steps to suit the situation.

High-Ceiling Installation (Up to 5 m for 10.0kW+ models)

The units can be installed in rooms with high ceilings, where they provide ample floor-level heating in
the winter. (See ceiling height guidelines below.
