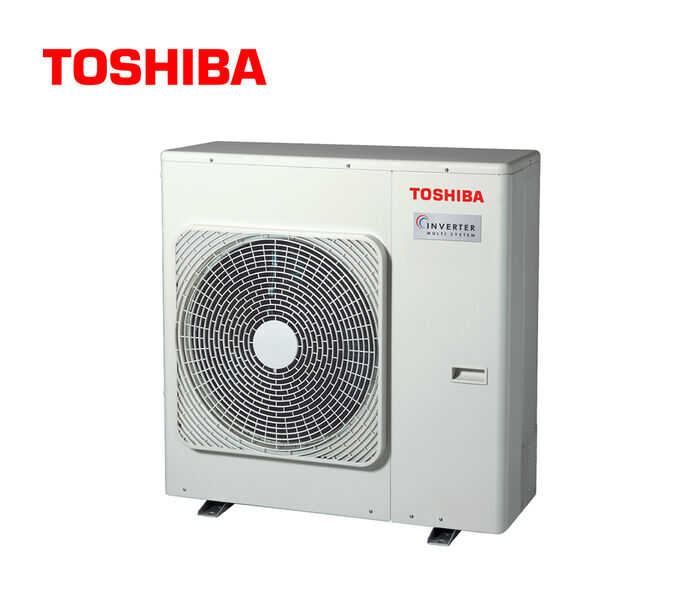

Toshiba MHS 7.5kW Multi Split Outdoor Unit

$2,274.00

Toshiba RAS-3M26U2AVG-A
7.5kW  Multi Outdoor Unit Only

3-Room Outdoor Unit

7.5 kW Cooling | 9.0 kW Heating

R32 | Twin Rotary Compressor

Add to wishlist
SKU: RAS-3M26U2AVG-A Categories: ,

SPECIFICATIONS

Outdoor Unit 3-Room Outdoor Unit

RAS-3M26U2AVG-A
Rated Cooling Capacity kW 7.50
Rated Heating Capacity kW 9.00
EER W/W 3.75
COP W/W 4.09
Dimensions (HxWxD) mm 890 x 900 x 320
Net Weight kg 72
Maximum Pipe Length  M 70
Maximum Height per unit 15
Pre-charged Length 40
Operating Range C -10 to 46 Cooling

-15 to 46 Heating
Power Supply V/Ph/Hz 1 Ph, 220-240V/50Hz



FEATURES

Up to 5 individually combinable indoor units can be connected to one outdoor unit. This considerably reduces the installation effort as well as the space requirements in the outdoor area.

Economical & reliable

  • High energy efficiency (A++).
  • Direct current hybrid inverter technology.
  • Twin-rotary compressor.
  • Exceptionally high efficiency in the partial load range.
  • Corresponds to the ECODESIGN Lot 10 Directive.
  • Wide operating temperature range.
  • Housing made of galvanized sheet steel with a cream- colored stove-enamel finish.
  • Large-scale, curved heat exchanger for low space requirements.
  • Automatic restart setting after power outage.

Resource-friendly

  • Inverter control minimizes electricity consumption.
  • Eco operation.
  • Pre-filled with environmentally-friendly R32 refrigerant.
  • Air used as energy source in heating mode.
  • Unobtrusive design fits any interior.
  • “Quiet” function lowers the noise level by up to 5dB(A).

Individually combinable indoor units

  • MIRAI standard high-wall unit.
  • SUZIMI PLUS classic high-wall unit.
  • DAISEIKAI 9 premium high-wall unit.
  • Slim duct unit.
  • 60×60 SLIM cassette.
  • Console.

Comfort and saving functions

  • Comfort IR remote controls optionally available.
  • Optional cable remote controls for cassette/duct unit.
  • Weekly timer with 4 freely programmable settings per day.
  • 28 time programs per week.
  • Comfort sleep.
  • Hi Power.
  • Quiet.
  • Optional WiFi control via smartphone, tablet, or PC.

Toshiba RAS-3M26U2AVG-A 7.5kW Multi Outdoor Unit Only

DESCRIPTION

INCLUDED

RAS-3M26U2AVG-A-TOSHIBA MULTI OUT 7.5KW 3-PORT R32

BROCHURE

Toshiba RAS-3M26U2AVG-A 7.5kW Multi Outdoor Unit-Brochure
