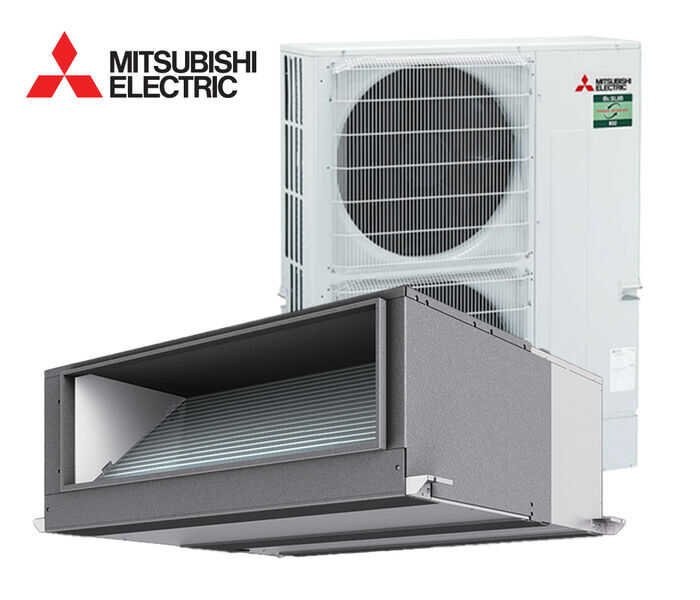

Name: Mitsubishi Electric SDR 18.0kW PEA-M-LAA Series Ducted AC System - Heat Cool Shop
SKU: PEAM180LAAVKIT
Price: 6544.00 AUD
Availability: InStock

SPECIFICATIONS

PEA-M LAA Series (Ceiling Concealed)

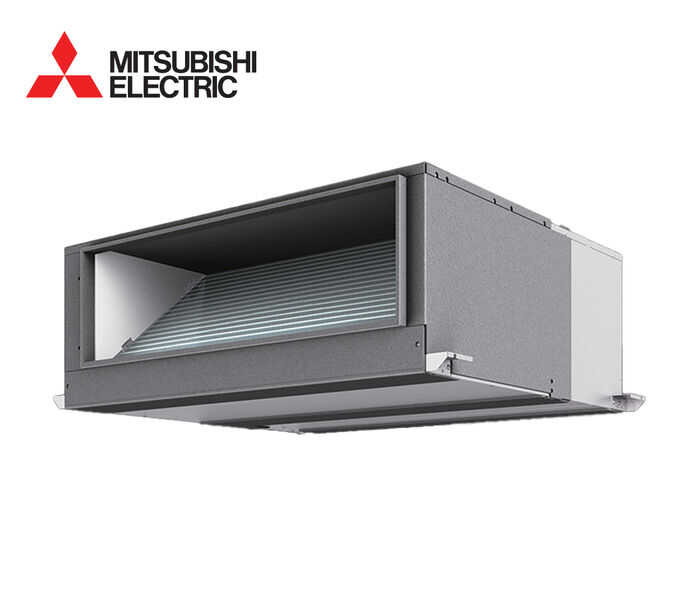

Indoor Unit				PEA-M180LAA

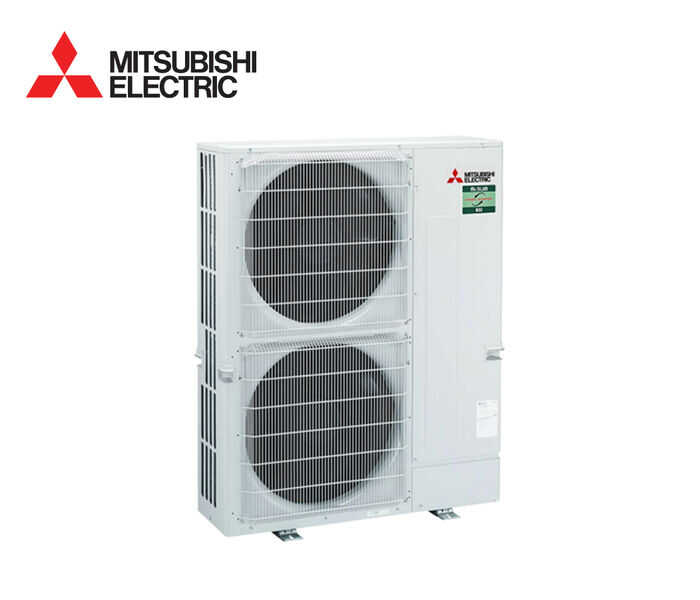

Outdoor Unit				PUZ-ZM180V/YKA
Refrigerant				R32
Power Supply	Source			Indoor/outdoor separate power supply
	Outdoor			V: 230 V, Single-phase, 50 Hz Y: 400 V, Three-phase, 50 Hz
	Indoor			230 V, Single-phase, 50 Hz
Cooling	Capacity [Min-Rated¹-Max]*		kW	4.90 – 18.00 – 20.00
	Total Input [Rated]*¹		kW	5.52
	AEER/EER			3.20/3.26
	TCSPF (Residential)		Hot	4.62
			Average	4.16
			Cold	4.23
	Running Current [Rated]*¹		A	22.23/5.45
	Sound Pressure Level*²	In (Lo-Mid2- Mid1-Hi) (SPL)	dBA	30 – 37.5 – 42 – 46
	Sound Pressure Level*²	Out (PWL)	dBA	58 (74)
	Air Volume (In) Lo-Mid2-Mid1-Hi		L/s	600 – 833 – 1017 – 1200
Heating	Capacity [Min-Rated¹-Max]*		kW	5.40 – 20.00 – 22.40
	Total Input [Rated]*¹		kW	5.10
	ACOP/COP			3.84/3.92
	HSPF (Residential)		Hot	4.79
			Average	4.18
			Cold	3.58
	Running Current [Rated]*¹		A	20.97/5.46
	Sound Pressure Level*²	In (Lo-Mid2- Mid1-Hi) (SPL)	dBA	30 – 37.5 – 42 – 46
	Sound Pressure Level*²	Out (PWL)	dBA	60 (76)
	Air Volume (In) Lo-Mid2-Mid1-Hi		L/s	600 – 833 – 1017 – 1200
Indoor Unit	Dimensions [HxWxD]		mm	470 x 1370 x 1120
	Weight		kg	88
	Static Pressure		Pa	75 – 100 – 150 – 200 – 250
	Max. Running Current		A	4.80
Outdoor Unit	Dimensions [HxWxD]		mm	1338 x 1050 x 330 (+40)
	Weight		kg	115/116
	Max. Running Current		A	28.22 (V)/9.27 (Y)
	Breaker Size		A	40 (V)/16 (Y)
Ext. Piping	Diameter [Liquid/Gas]		mm	ø9.52/ø19.10
Ext. Piping	Max. Length/Height		m	75/30
Guaranteed Operating Range [Outdoor]		Cooling	°C	-5(-15)*⁵ ~52
Guaranteed Operating Range [Outdoor]		Heating	°C	-20 ~ 21
Supply Air Duct			mm	1100 x 340
Return Air Duct			mm	1100 x 420
Pre-Charge Refrigerant			kg	5.0 (30m)
Additional Refrigerant			g/m	70*⁴

FEATURES

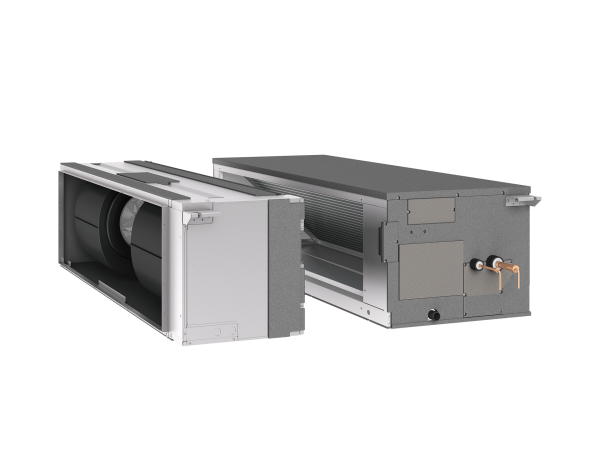

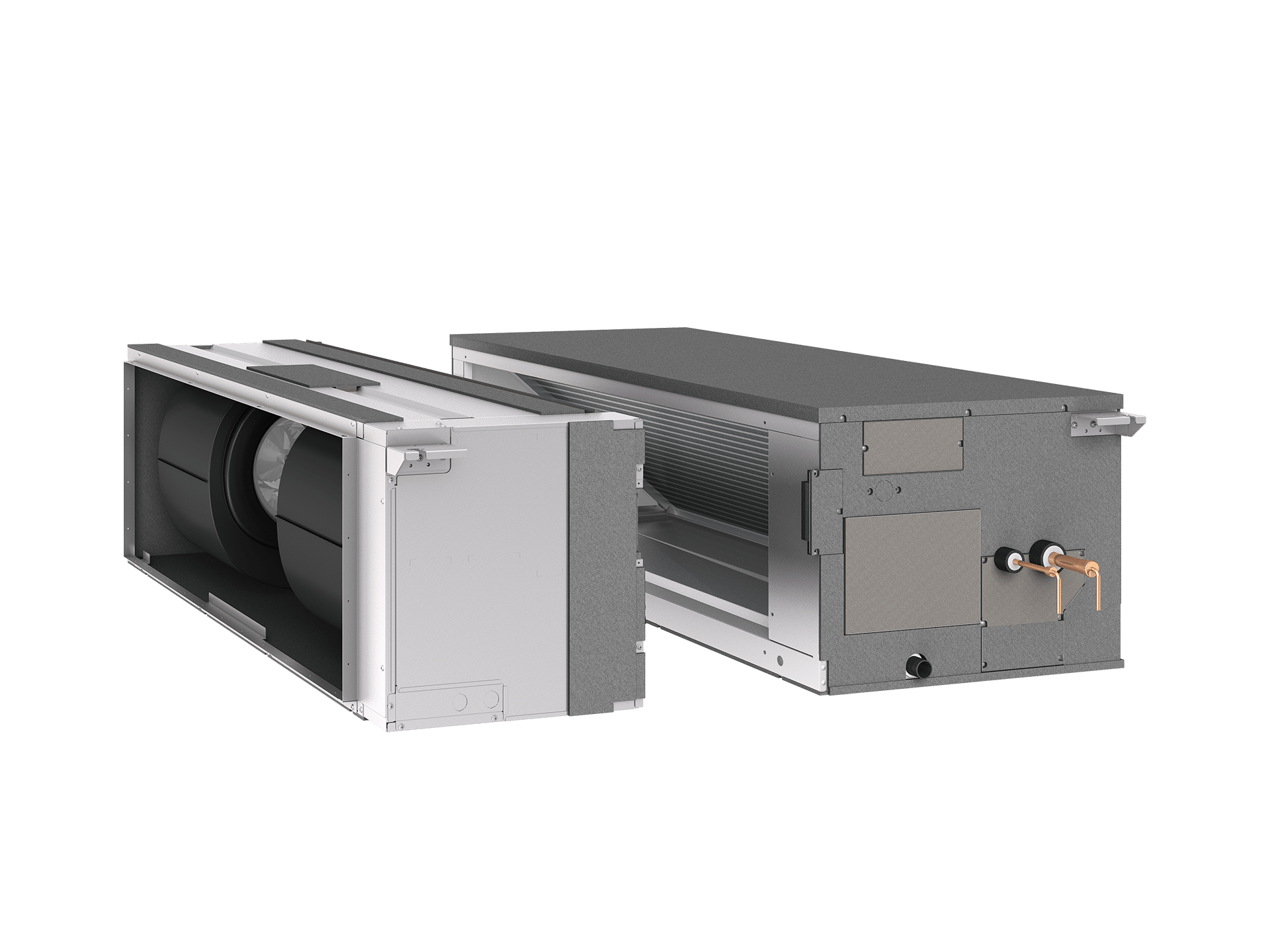

2 piece construction

This ducted fan coil has a two-piece construction, which allows for the separation of the indoor unit heat exchanger and the fan deck assembly. This is beneficial for installation into the roof space, for greater room capacities and increased variation in airflow; ensuring operation that suits most room layouts.

Ideal for remodelling of existing houses

The unit can be installed in roof trusses thanks to the two-piece structure.

Easier Installation

The fan deck section and the heat exchanger can be separately transported and assembled in the ceiling space. This feature requires an access panel large enough to pass each part through.

High external static pressure

The HAA Series incorporate three-stage external static pressure conversions and four fan speed selections, offering the ultimate in comfort solutions. HAA Series units are designed for human comfort and to be installed in a wide range of building types with broad static pressures requirements ranging from 50 to 150Pa. *Application dependent on site conditions.

Optional zone controller

Upgrading to an optional zone controller gives the option of up to 4 or 8 zones, to provide control to different rooms of the home. Zone Controller is compatible with the optional Wi-Fi Control interface and app.

Wi-Fi Control

Unlock the door to smarter heating and cooling systems, for total home comfort. This innovative technology connects your Mitsubishi Electric air conditioner to your smartphone, tablet or online account, giving you the freedom to fully control each unit on-the-go via an internet connection from anywhere in the world.
*1 Optional Wi-Fi adapter required per unit. Requires an internet connection and the Wi-Fi Control App downloaded on your smartphone or tablet with the latest operating system available.
*2 To use Amazon Alexa to control your air conditioner you will need an Amazon Alexa Echo device.
*3 To use Google Assistant to control your air conditioner you will need a Google Home Smart speaker.

Flexible ducting design

With the flexibility of ducted design and 150Pa external static high-pressure are incorporated. The increased variation in airflow options ensures operation that best matches virtually all room layouts.

R32 refrigerant

R32 enables increased energy efficiency compared to R410A, with just one third of the global warming potential, the risk of environmental harm is greatly reduced.
